5. Lower the right end and remove the Right Roll Guide from the printer.
NOTE: When you finish installing or replacing this component, you must perform the necessary
Service Calibrations. To find which calibrations you must perform, refer to
Service Calibration Guide to
Removal and Installation on page 170.
Encoder Strip (with spring and attachment nut)
Removal
NOTE: Switch off the printer and remove the power cable.
1. Remove the Right Cover (refer Right Cover on page 185).
2. Remove the Left Cover (refer
Left Cover on page 188).

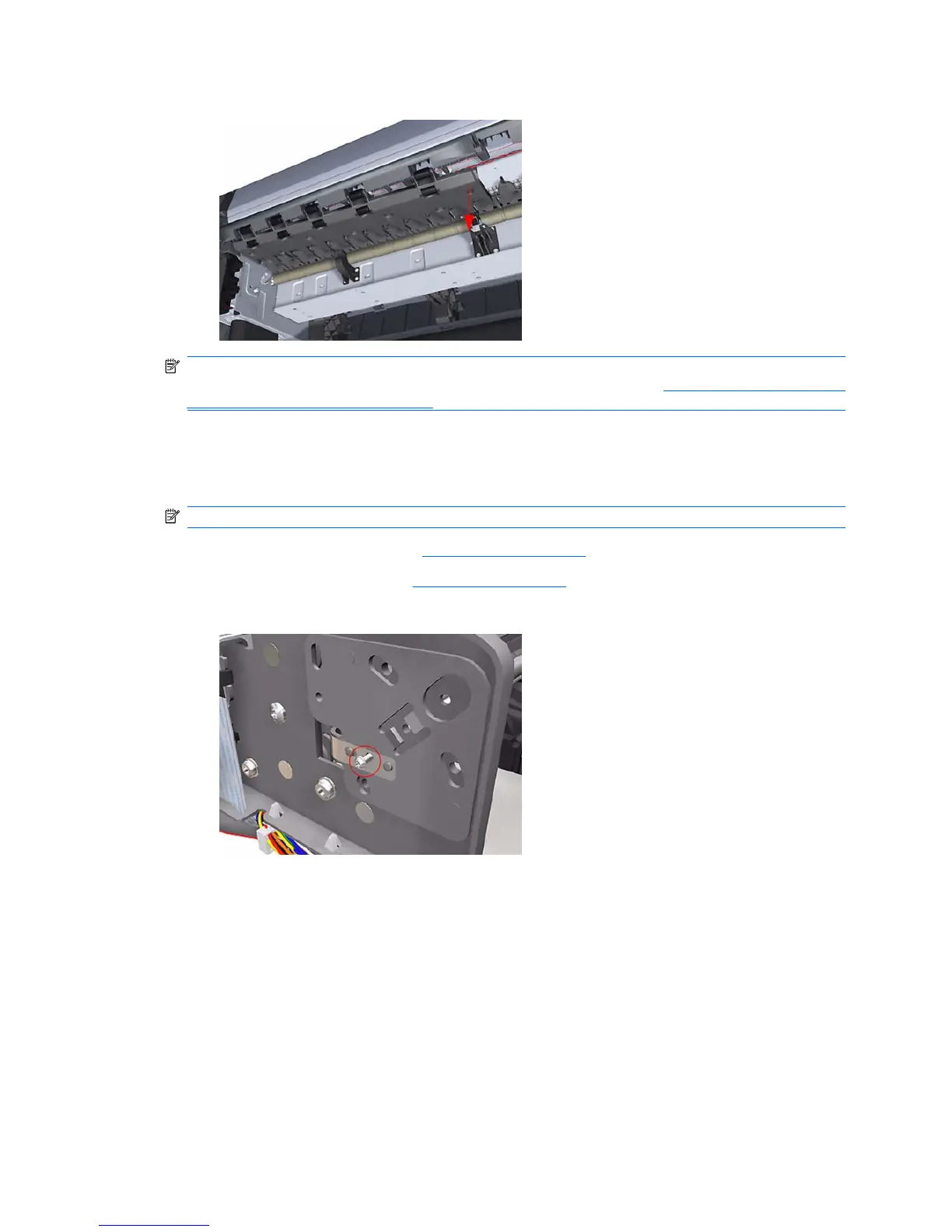

3. Remove the T-15 screw that secures Encoder Strip to the printer.
ENWW Encoder Strip (with spring and attachment nut) 231
