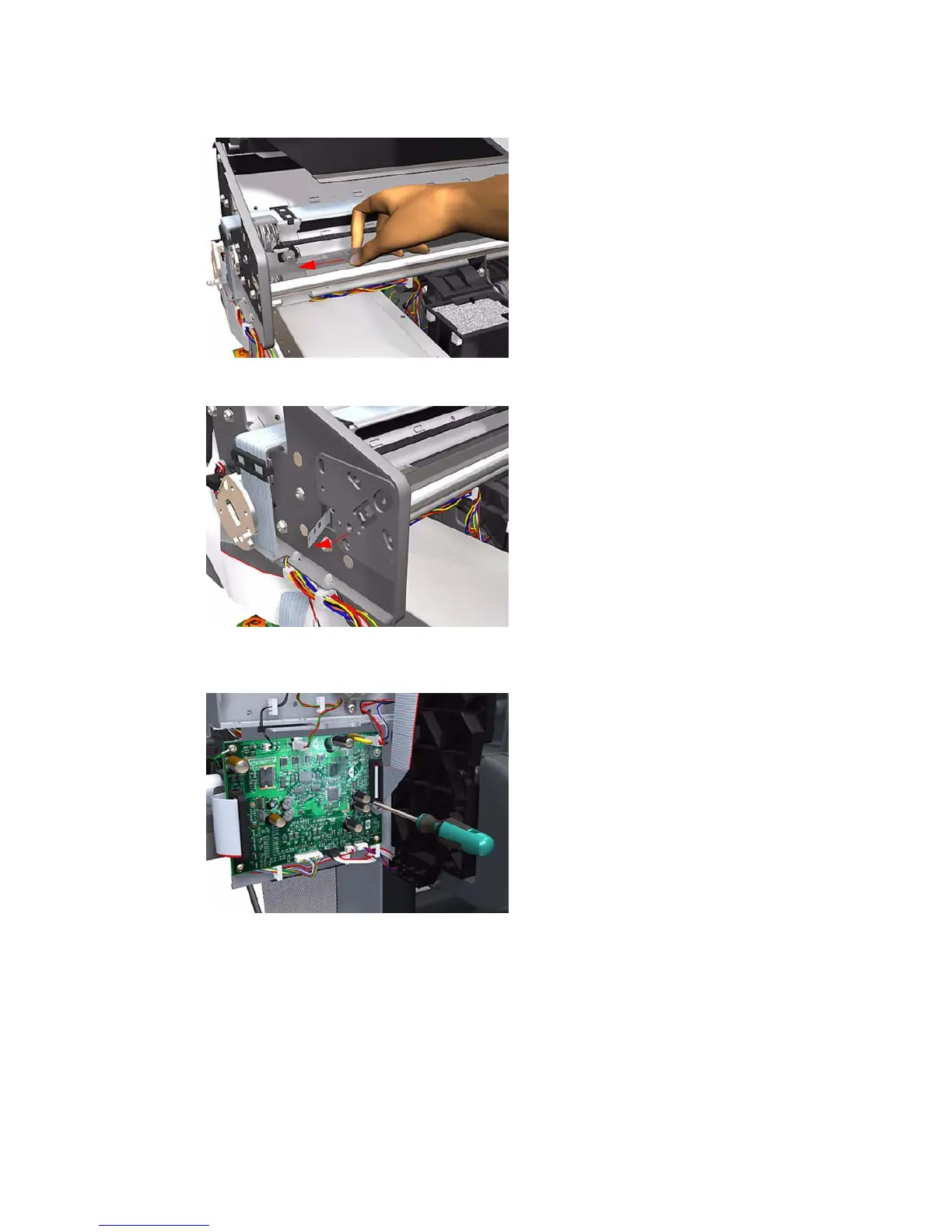

4. Grip the Encoder Strip and move it towards the left to take off the tension until you have completed
the next step.
5. Unclip the Encoder Strip from it’s attachment lugs.
6. Loosen the T-10 uncapping screw sufficiently so you can manually move the Carriage Assembly
in step 7.
