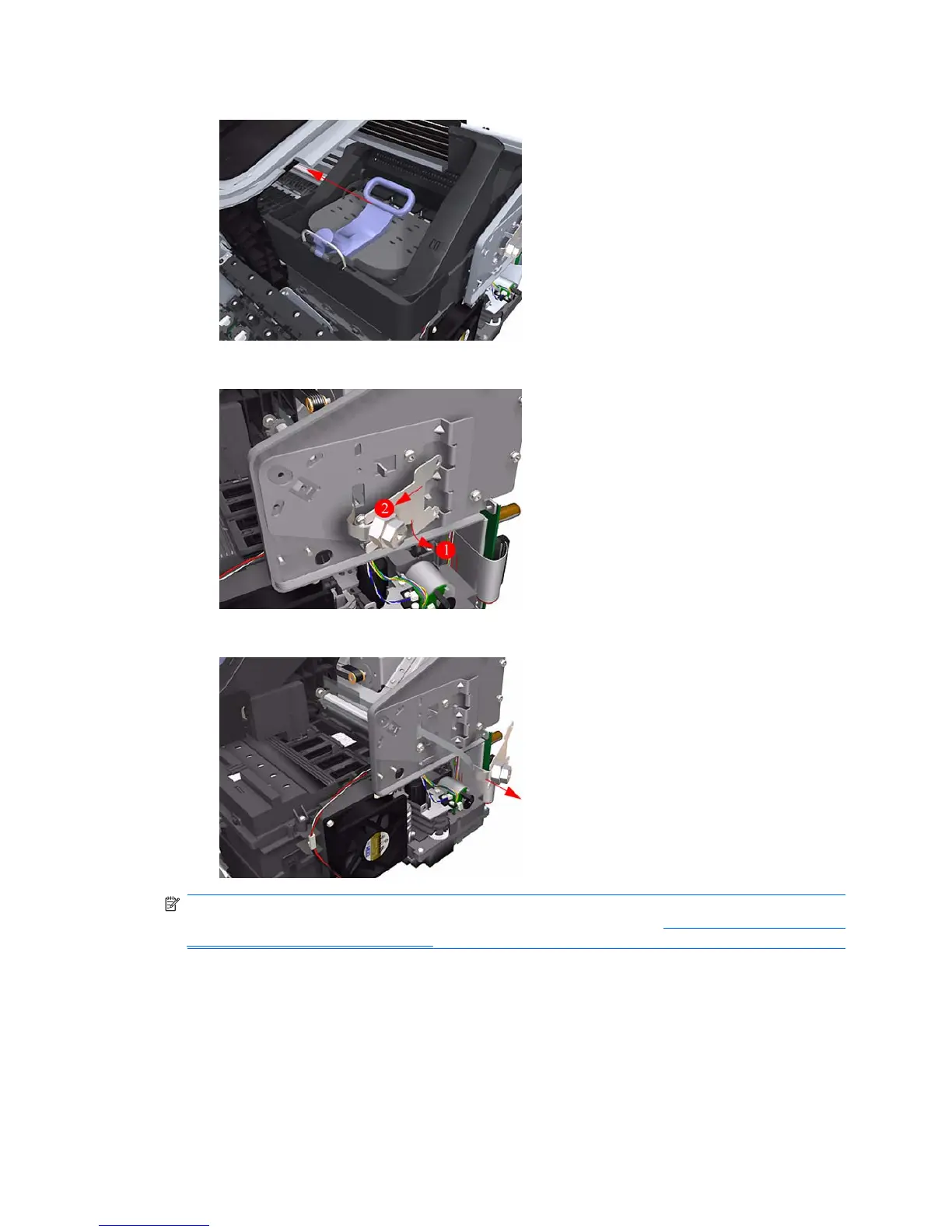

7. Push the Carriage Assembly into the print path.
8. Unclip the Encoder Strip tensioner from the right hand end.
9. Carefully pull the Encoder Strip out of the printer from the right hand end.
NOTE: When you finish installing or replacing this component, you must perform the necessary
Service Calibrations. To find which calibrations you must perform, refer to
Service Calibration Guide to
Removal and Installation on page 170.
ENWW Encoder Strip (with spring and attachment nut) 233
