HP DesignJet Z5200 series

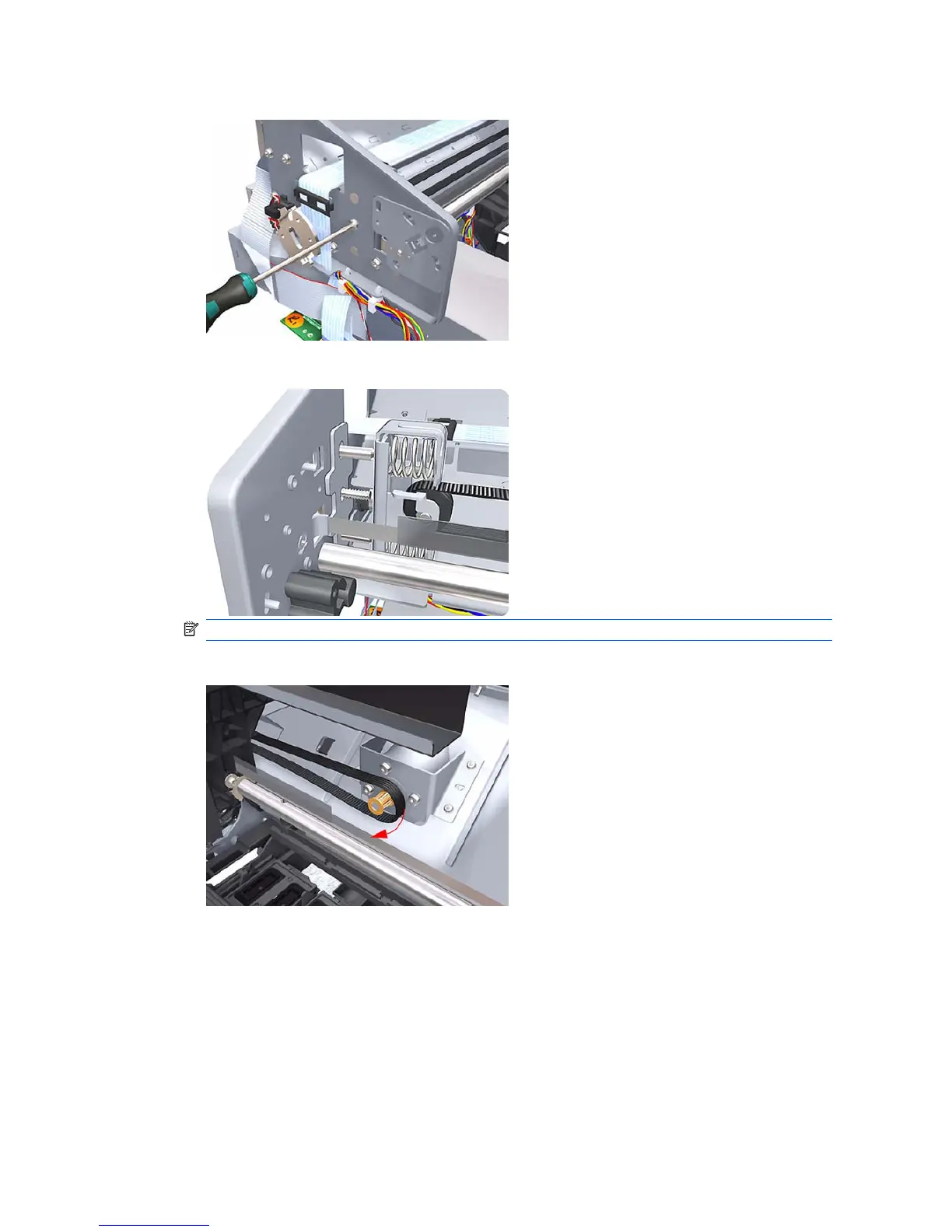

5. Loosen the T-15 screw Belt Tensioner to the printer to remove the tension from the belt.
6. Leave the Belt Tensioner in place.
NOTE: There is a spacer between the right end plate and the tensioner.
7. Remove the Belt Assembly from the drive wheel of the Scan-Axis Motor.
