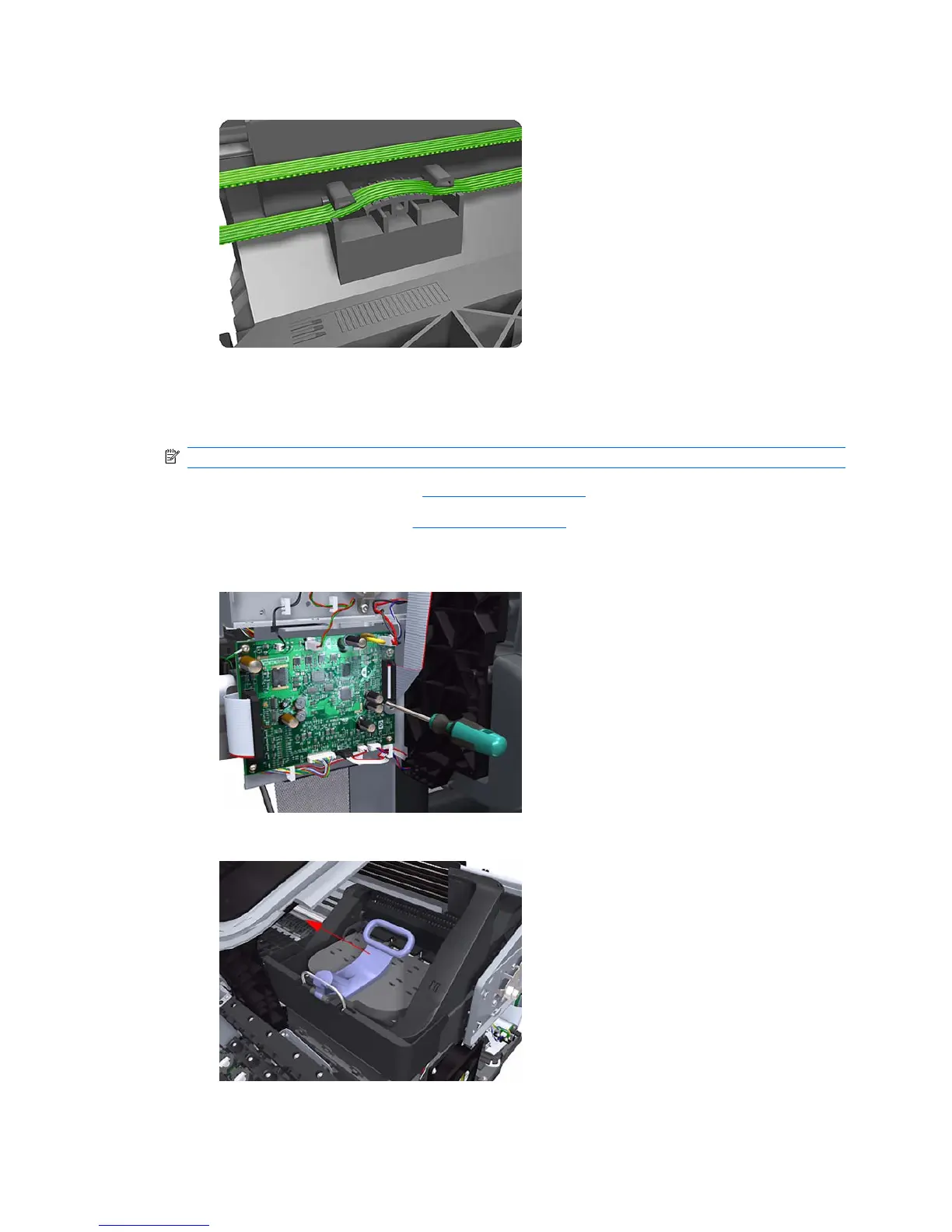

When installing the new belt, make sure the belt is correctly installed under the carriage assembly.
Scan-Axis Motor
Removal
NOTE: Switch off the printer and remove the power cable.
1. Remove the Right Cover (refer Right Cover on page 185).
2. Remove the Left Cover (refer
Left Cover on page 188).
3. Loosen the T-10 uncapping screw sufficiently so you can manually move the Carriage Assembly
in step 4.
4. Push the Carriage Assembly into the print path.
ENWW Scan-Axis Motor 257
