156 Chapter 5 Service Calibrations
Service Calibrations

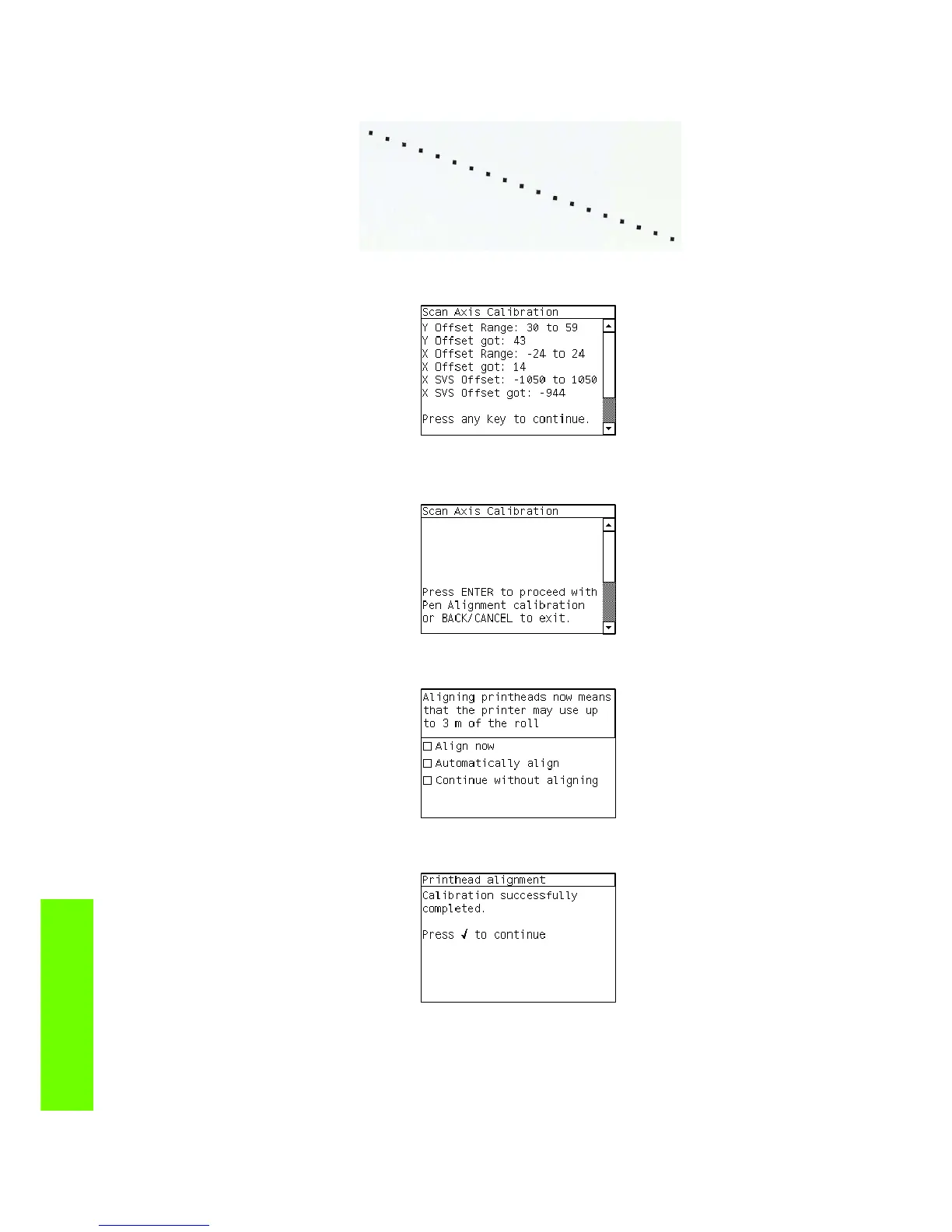

6. The Printer will start to calibrate the Line Sensor position to the Black Printhead. It will print a line of
black dots and then scan them:
7. Once the Line Sensor has been calibrated, the results will be displayed on the Front Panel. Press
Enter to finish the calibration or press Back or Cancel to exit the calibration.
8. The Printer will now perform the Printhead Alignment. When the following message appears on the
front panel, you must select whether you would like to continue with the calibration by pressing the
Enter key. Press Back or Cancel to exit the calibration.
9. Before continuing with the Printhead Alignment, the following message will be displayed on the
Front Panel. To continue with the Printhead Alignment, select “Align now” and press the Enter key.
10. Once the Printhead Alignment is completed, the following message will be displayed on the Front
Panel. Press the Enter key to continue.
If the Printhead Alignment fails for any reason, a warning message will appear on the Front Panel. In
this case, try the following:
• Enter the Front Panel menu and retry the Printhead Alignment. If the Alignment completes suc-
cessfully, then perform the Color Calibration.
