Entering the Service Calibrations Menu 177
Service Calibrations
12. The calibration process continues and front panel shows the following messages as the new
norminal offset value is read and saved to NVM:
• Reading Nominal Offset.
• New Nominal Offset is [ActualValue].
• Saving to nvm.
• Saved.
13. Once the calibration is completed, OK will be displayed on the Front Panel.
14 . Replace the Right Hand Cover (See page 264
).
8. Platen Blue Line Calibration
The purpose of this Service Calibration is to calibrate the blue line which is marked on the Print Platen.
Perform the Platen Blue Line Calibration whenever:
•
Center Platen is disassembled or replaced.
Perform the Platen Blue Line Calibration as follows:

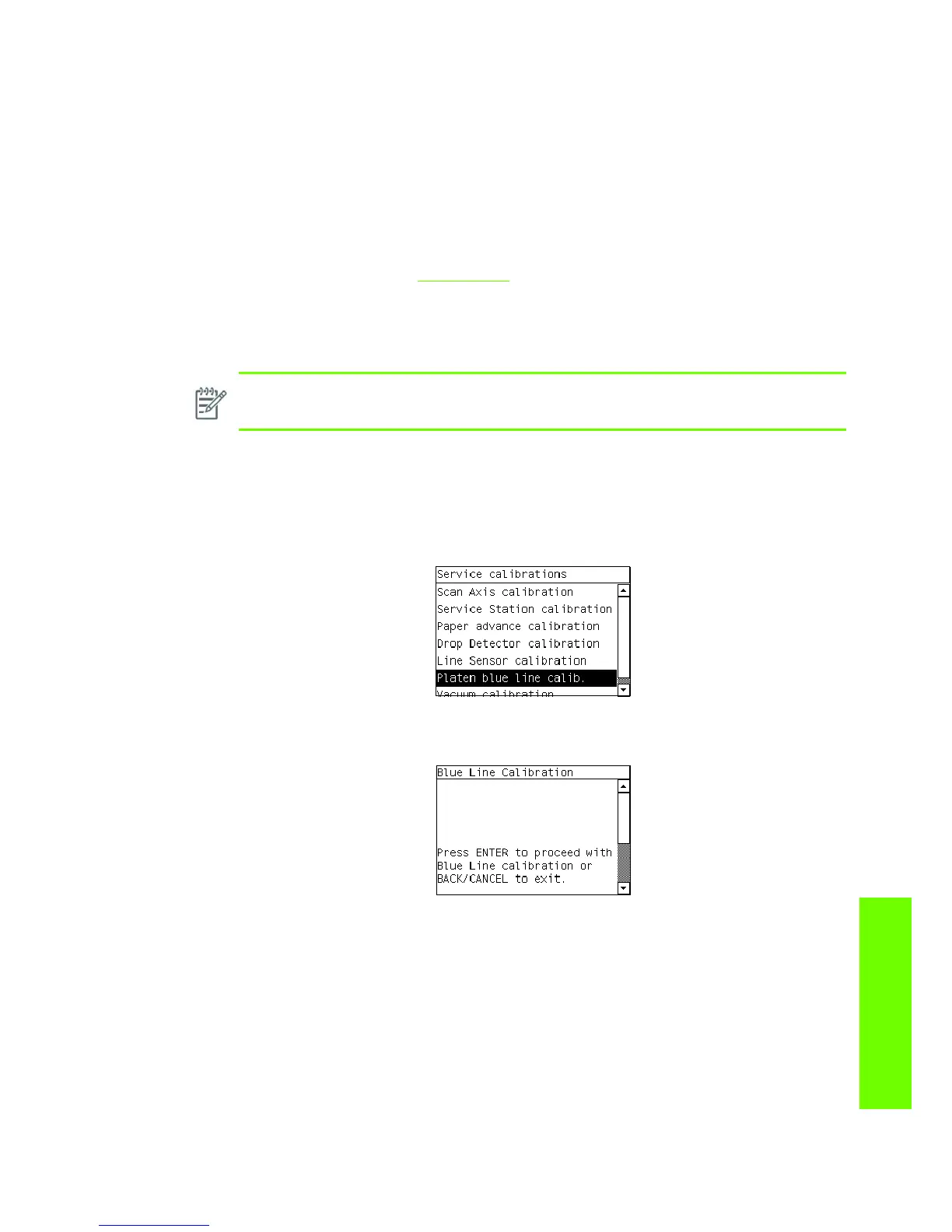

1. In the Service Calibrations submenu, scroll to “Platen blue line calib.” and press Enter.
2. When the following message appears on the front panel, you must select whether you would like to
continue with the calibration by pressing the Enter key. Press Back or Cancel to exit the
calibration.
NOTE: Make sure you unload media before performing this calibration.
