338 Chapter 8 Removal & Installation
Removal & Installation

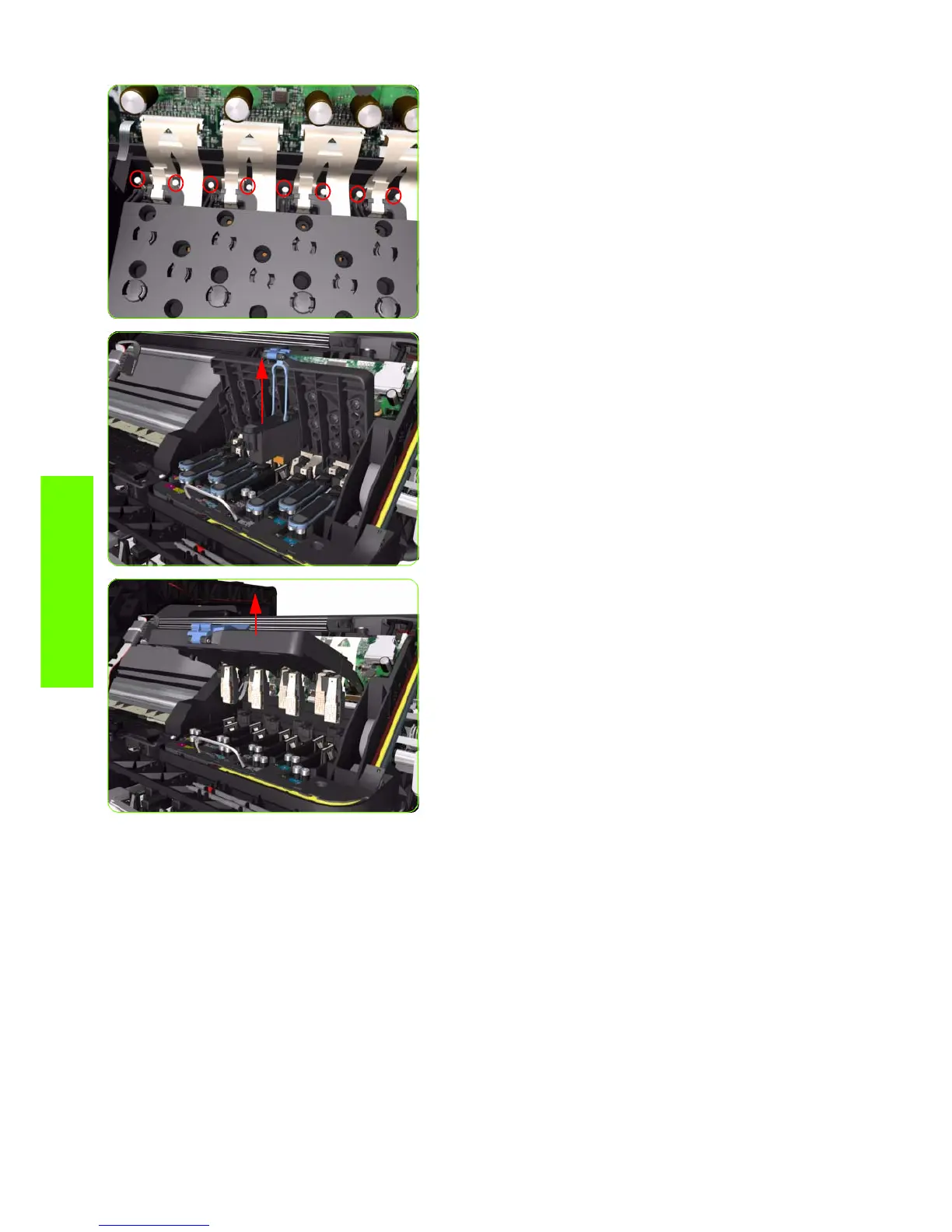

7. Remove eight T-8 screws (Type L) that secure the
Carriage Flex Cables to the Carriage Assembly.
8. Open the Carriage Cover and remove ALL the
Printheads from the Carriage Assembly.
9. Remove the Carriage Flex Cable from the Printer.
To Next Page
