HP Designjet Z6200

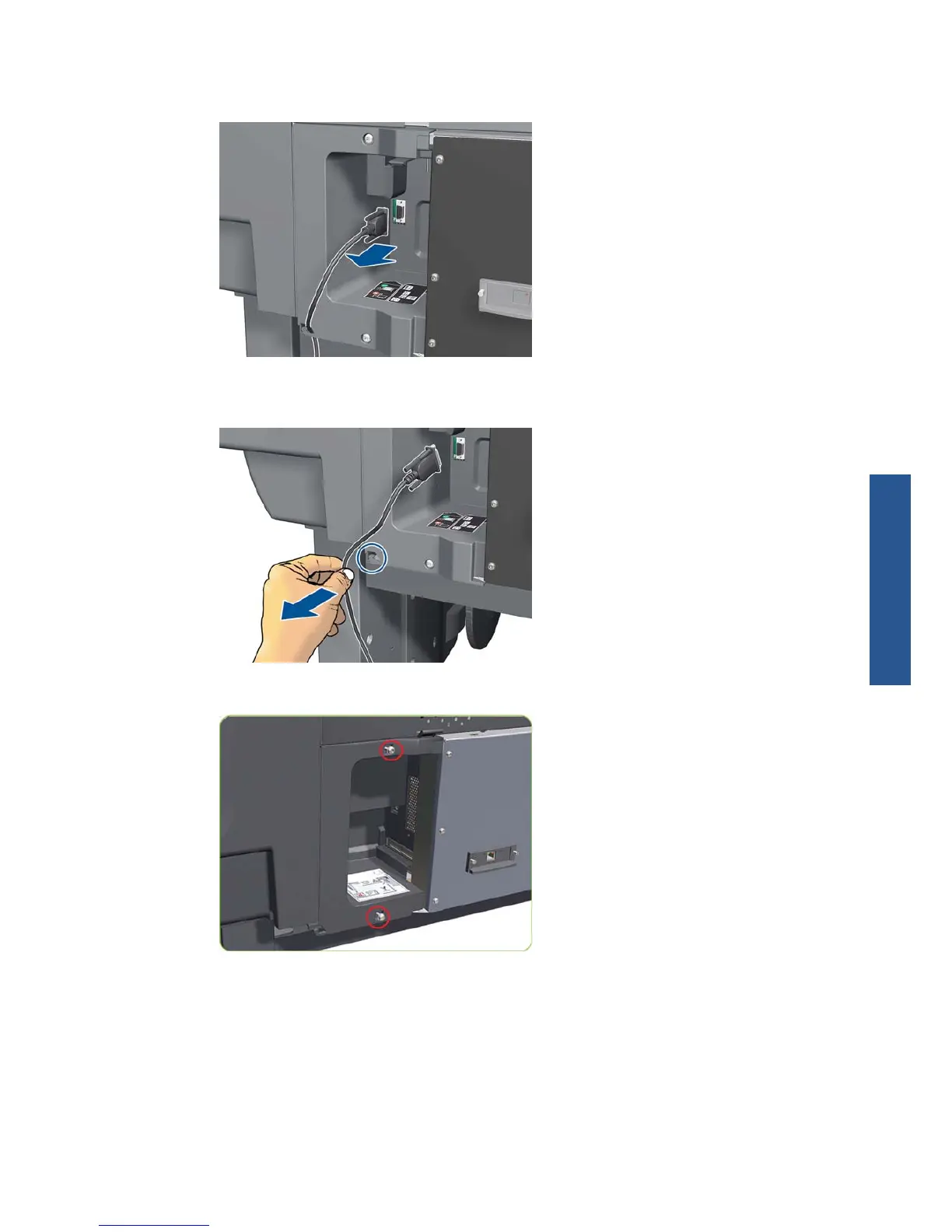

2. For the 60-inch model, and optionally the 42-inch model, disconnect the TUR connector.
3. For the 60-inch model, and optionally the 42-inch model, unroute the TUR cable from the Right
Connector Cover.
4. Remove two T-20 screws (Type B) from the Right Connector Cover.
ENWW
Disassembly order
239
Removal and
installation
