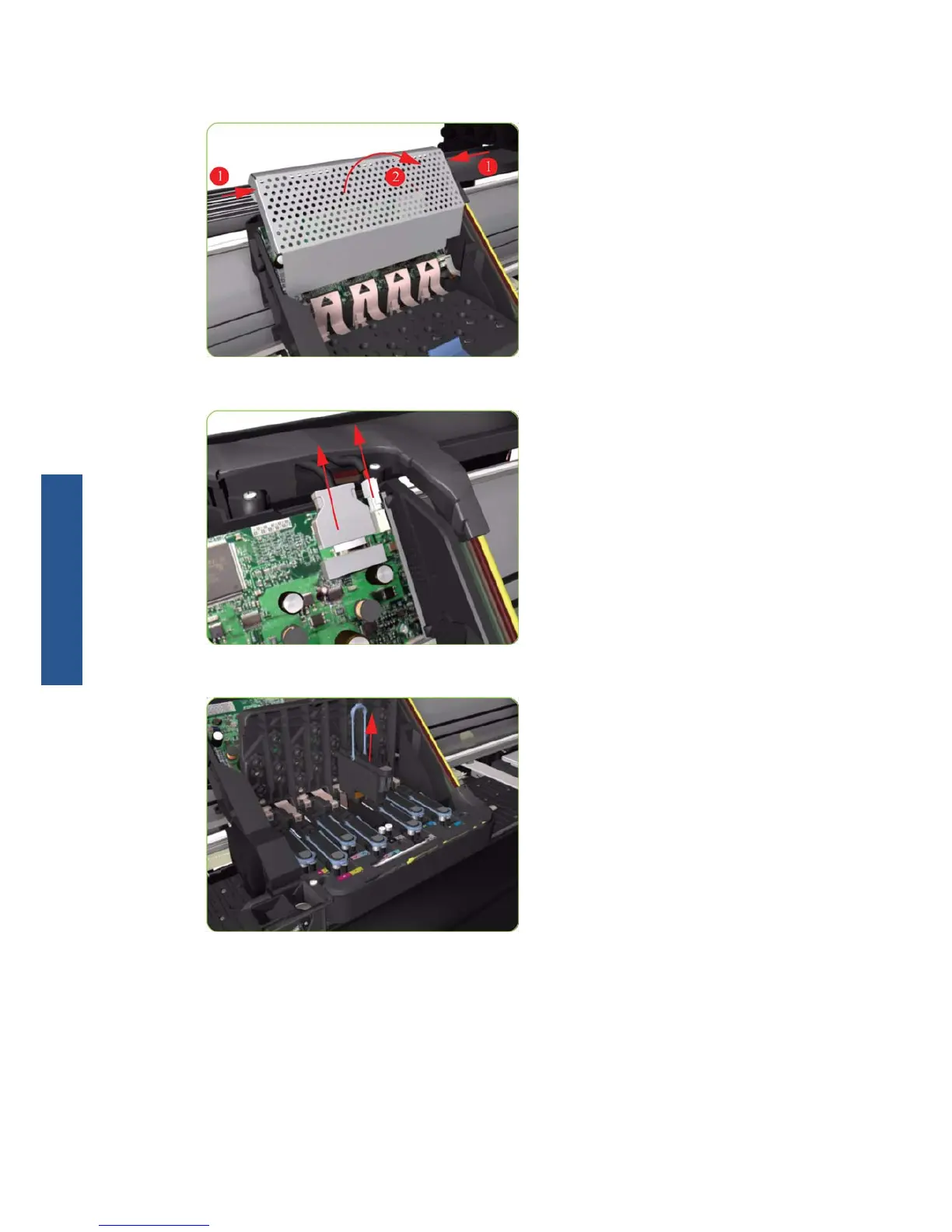

14. Press the two side of the Carriage PCA Cover and unclip from the Carriage Assembly.
15. Disconnect the Trailing Cable from the Carriage PCA.
16. Open the Carriage Cover and remove all the Printheads from the Carriage Assembly.
268 Chapter 8 Removal and installation ENWW
Removal and
installation
