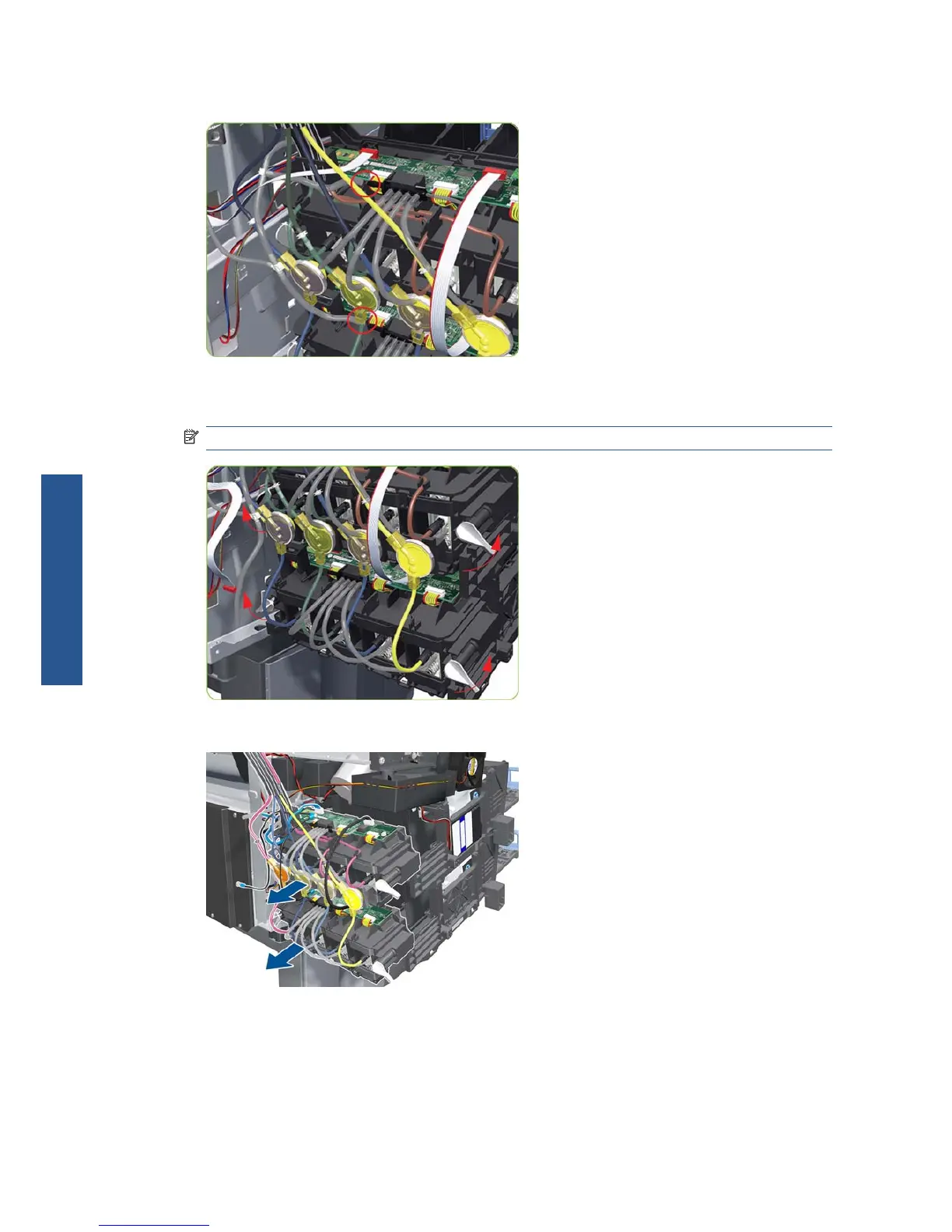

26. Disconnect the Air Tubes from the Ink Cartridge Tube Connector.

27. Twist the four latches at the rear of the Ink Cartridge Tube Connector and release the complete

assembly.

NOTE: Be careful not to damage the interconnecting cable.

28. Carefully slide the Ink Cartridge Tube Connector off the Ink Supply Station.

272 Chapter 8 Removal and installation ENWW
