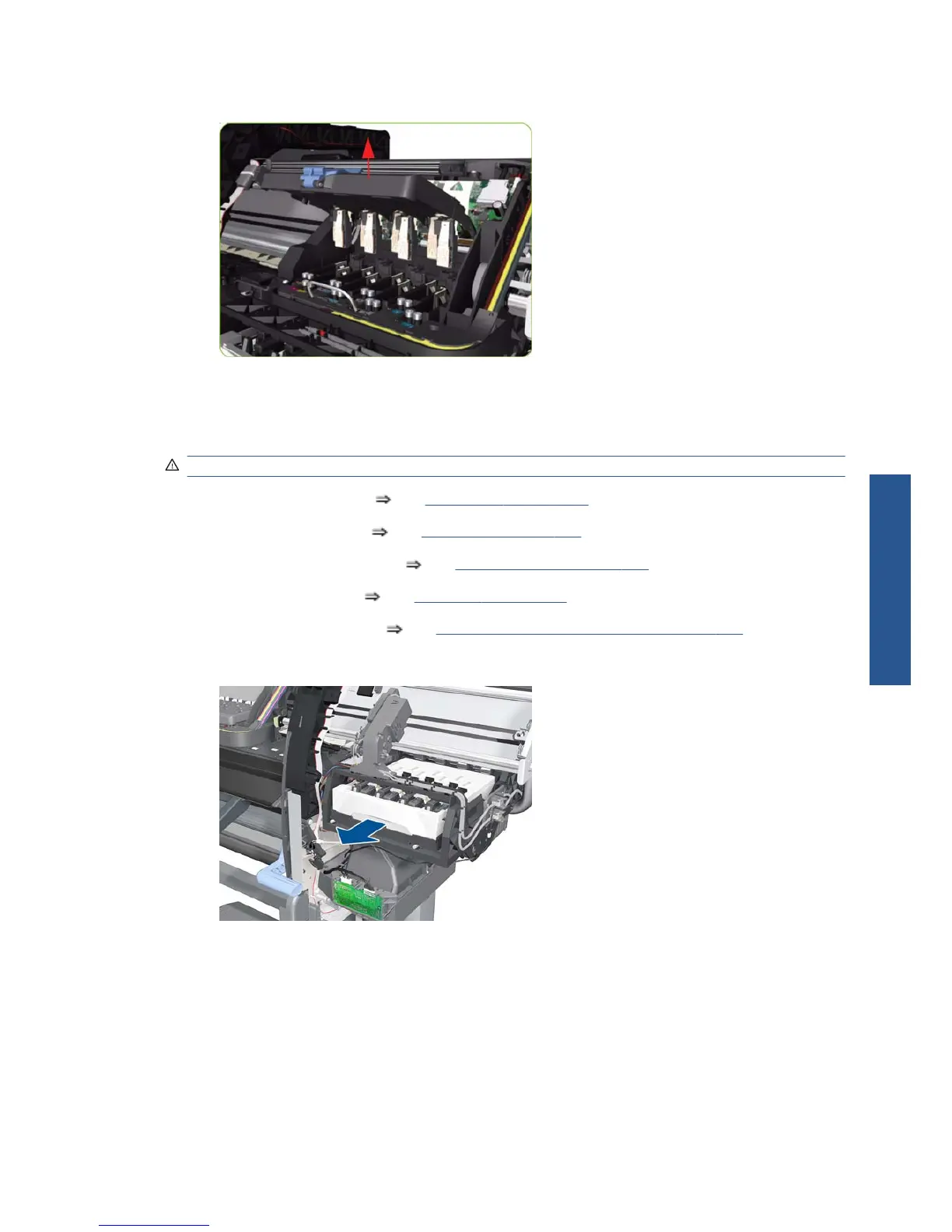

9. Remove the Carriage Flex Cable from the printer.
Carriage Assembly
Removal
WARNING! Switch off the printer and remove the power cable.
1. Remove the Right Cover See Right Cover on page 216.
2. Remove the Front Panel
See Front Panel on page 245.
3. Remove the Primer Assembly
See Primer Assembly on page 247.
4. Remove the Left Cover
See Left Cover on page 222.
5. Remove the Encoder Strip
See Encoder Strip and Encoder Sensor on page 292.
6. Pull out the Printhead Maintenance Cartridges tray.
ENWW
Disassembly order
301
Removal and
installation
