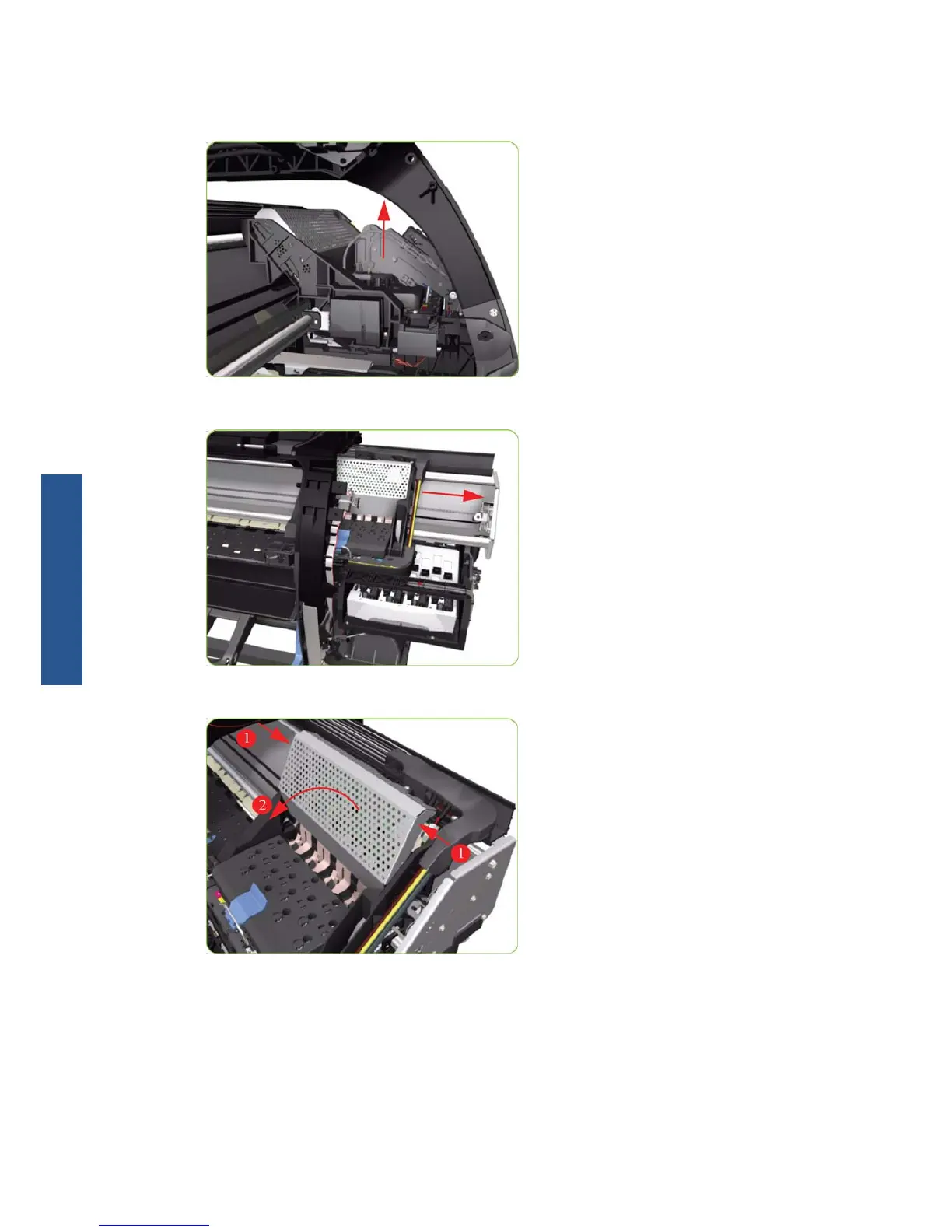

7. Lift the Primer and hold the Primer to its maximum position to avoid damaging it when you move
the Carriage Assembly in the next step.
8. Move the Carriage Assembly to the extreme right of the printer.
9. Press the two side of the Carriage PCA Cover and unclip from the Carriage Assembly.
