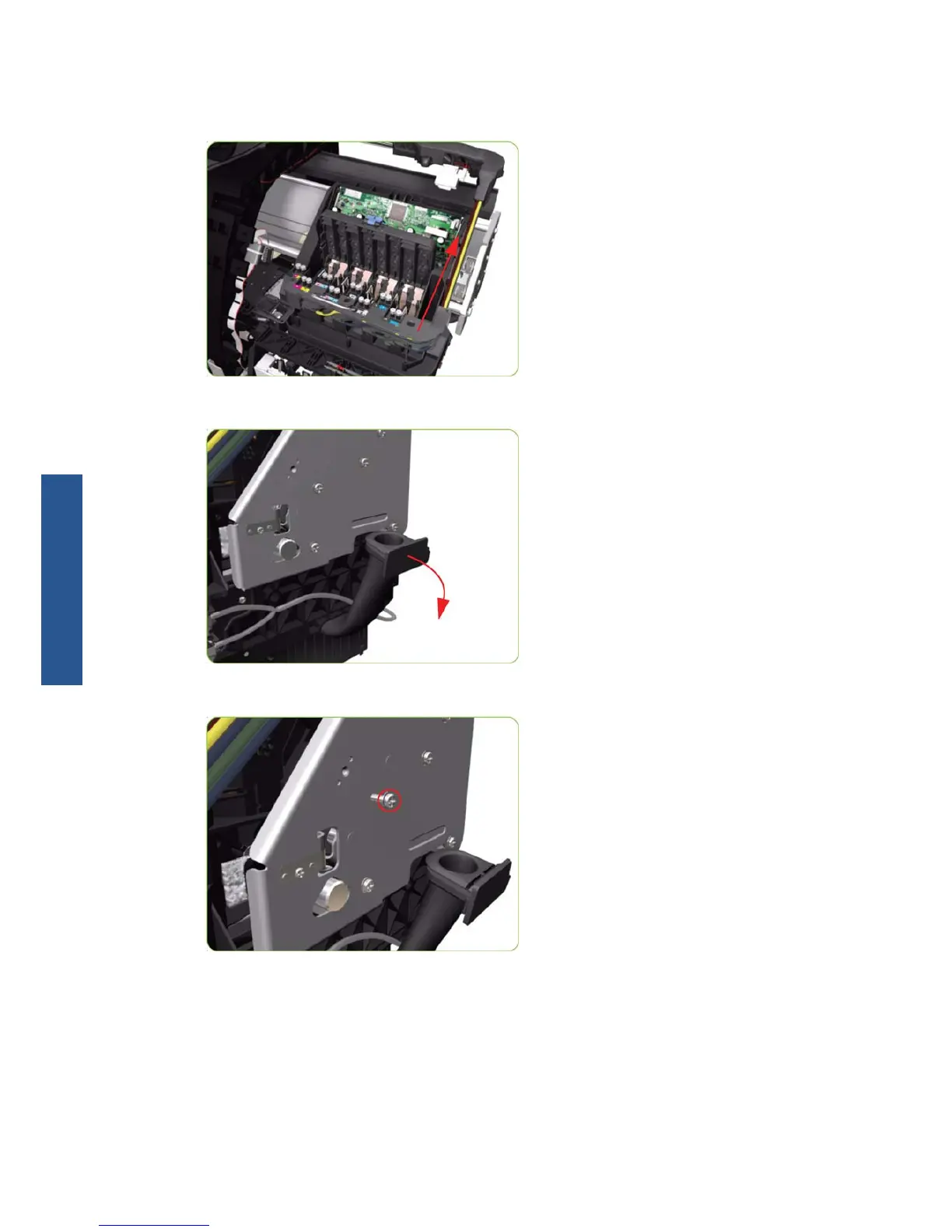

13. Remove the Ink Supply Tubes from the Carriage Assembly and safely place to one side of the
printer.
14. Disconnect the Aerosol Fan Tube from the Chassis.
15. Remove one T-20 screw (Type A) that secures the Belt Tensioner to the Chassis.
