HP Designjet Z6200 - Page 315

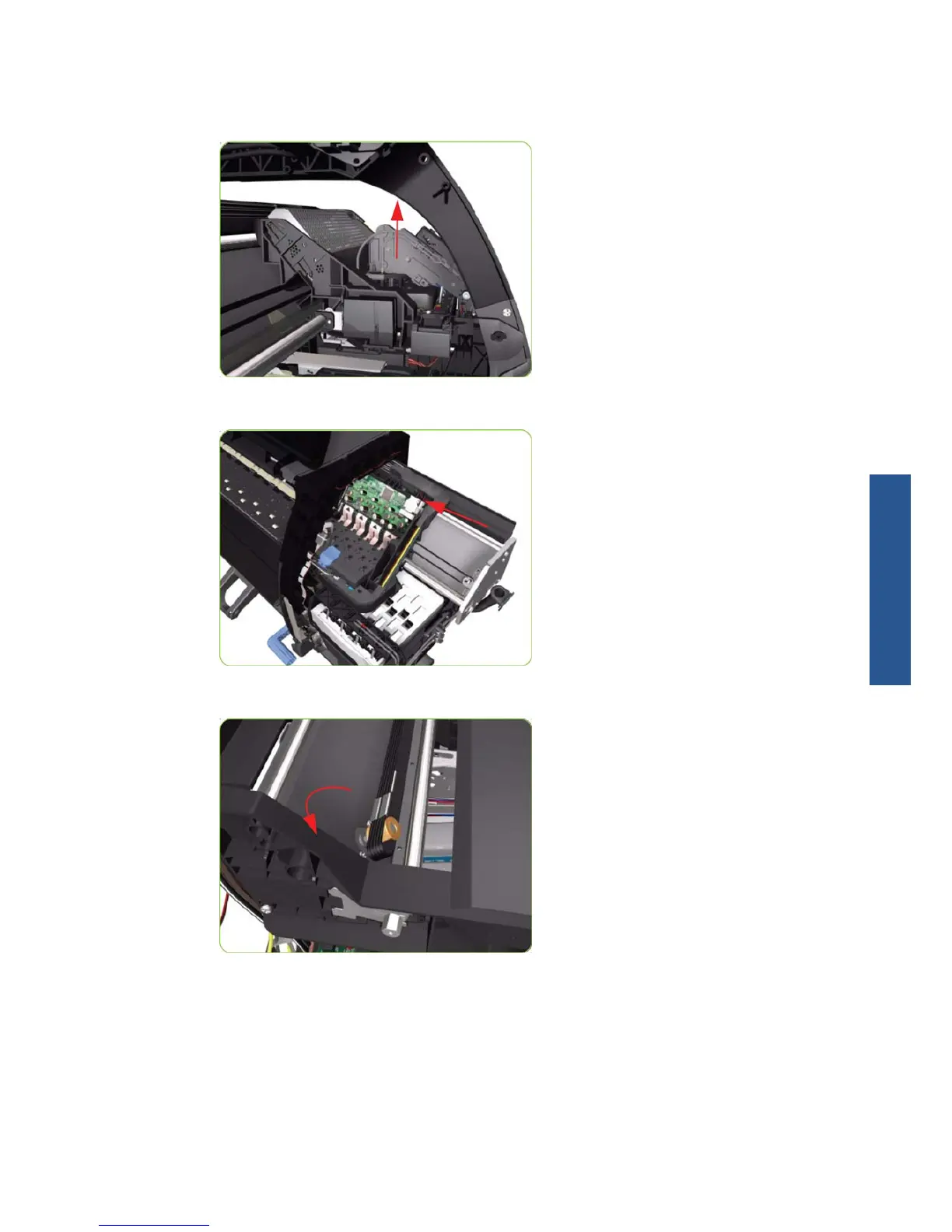

16. Lift the Primer and hold the Primer to its maximum position to avoid damaging it when you move
the Carriage Assembly in the next step.
17. Move the Carriage Assembly slightly away from the right Scan-Axis Bracket.
18. Release the Carriage Belt from the Scan-Axis Motor on the left-hand side of the printer.
ENWW
Disassembly order
305
Removal and
installation
