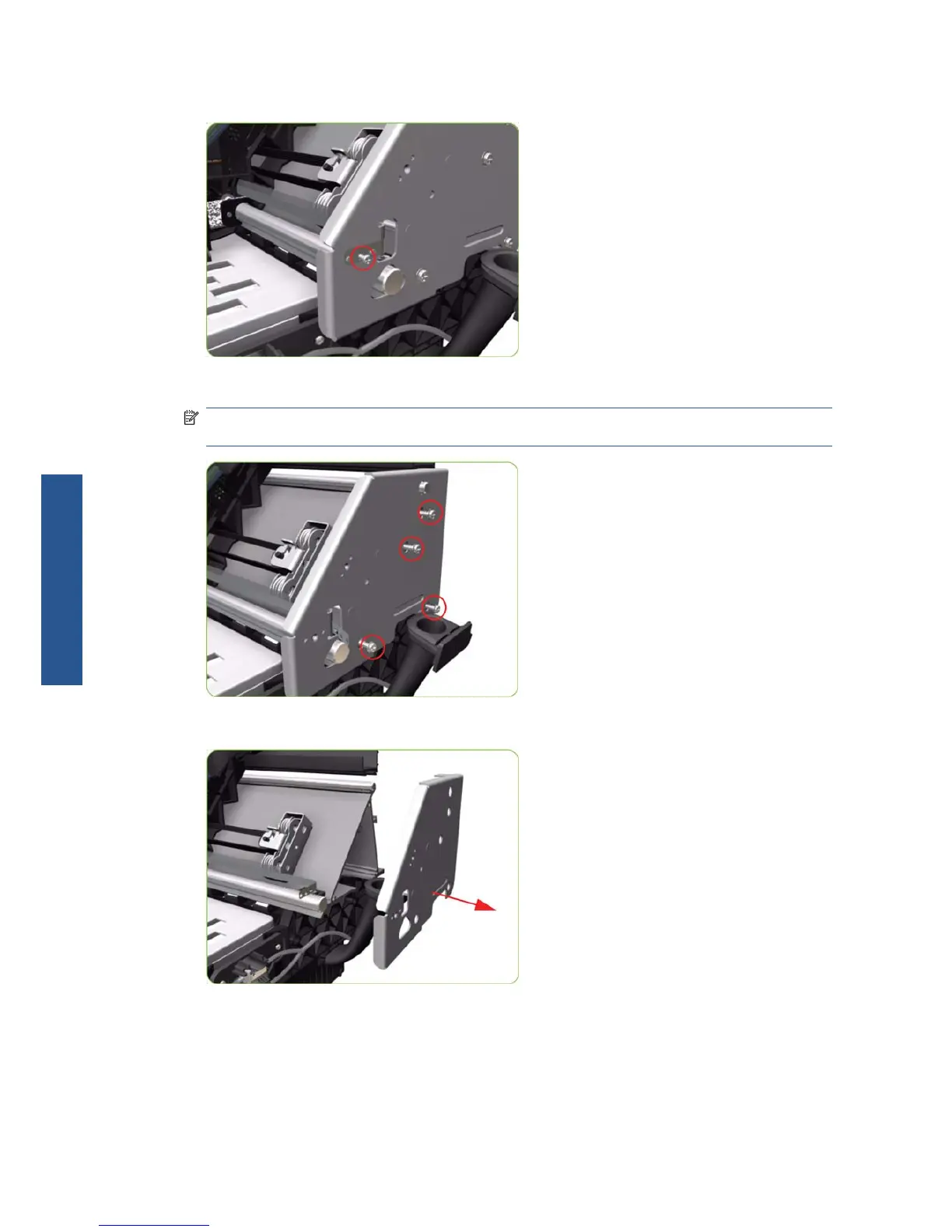

19. Remove one T-10 screw (Type C) that secure the Encoder Strip.
20. Remove four T-20 screws (Type N) that secure the right Scan-Axis Bracket.
NOTE: Note that these are Chassis screws and in normal circumstances should NEVER be
removed, but in this case we need to remove them in order to remove the Carriage Assembly.
21. Remove the right Scan-Axis Bracket from the printer.
