Belt Assembly
Removal
WARNING! Switch off the printer and remove the power cable.
1. Remove the Right Cover See Right Cover on page 216.
2. Remove the Left Cover
See Left Cover on page 222.
3. Remove the Top Cover
See Top Cover (60-inch) on page 229.
4. Remove the Encoder Strip
See Encoder Strip and Encoder Sensor on page 292.
5. Remove the Carriage Assembly
See Carriage Assembly on page 301.

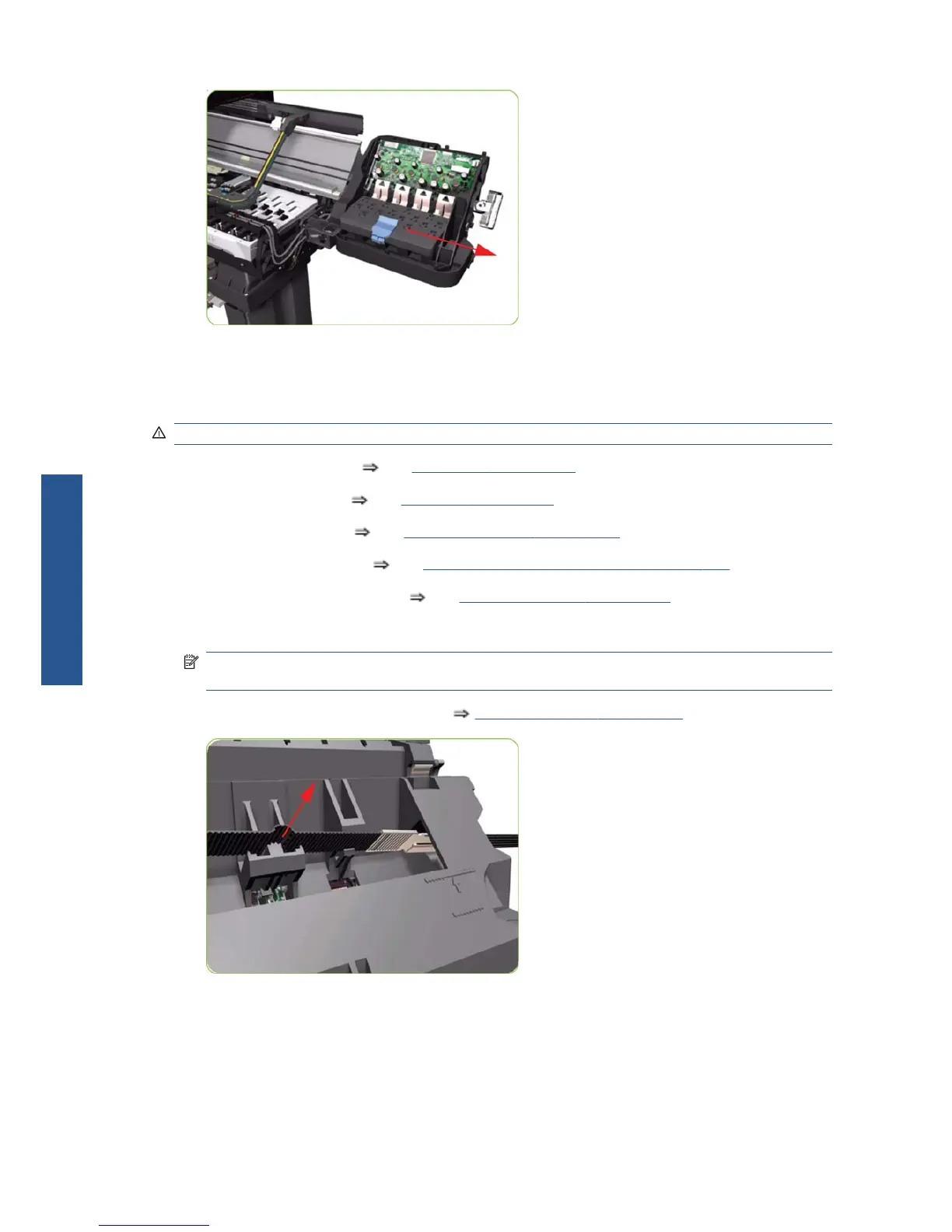

6. Release the Belt from the bottom of the Carriage Assembly.
NOTE: After installing the NEW Belt Assembly, make sure you perform the following Service
Utility:
●
Reset life counter scan cycles belt
Reset Life Counters on page 108.
Scan-Axis Motor
Removal
308 Chapter 8 Removal and installation ENWW
Removal and
installation
