HP Designjet Z6200 - Page 328

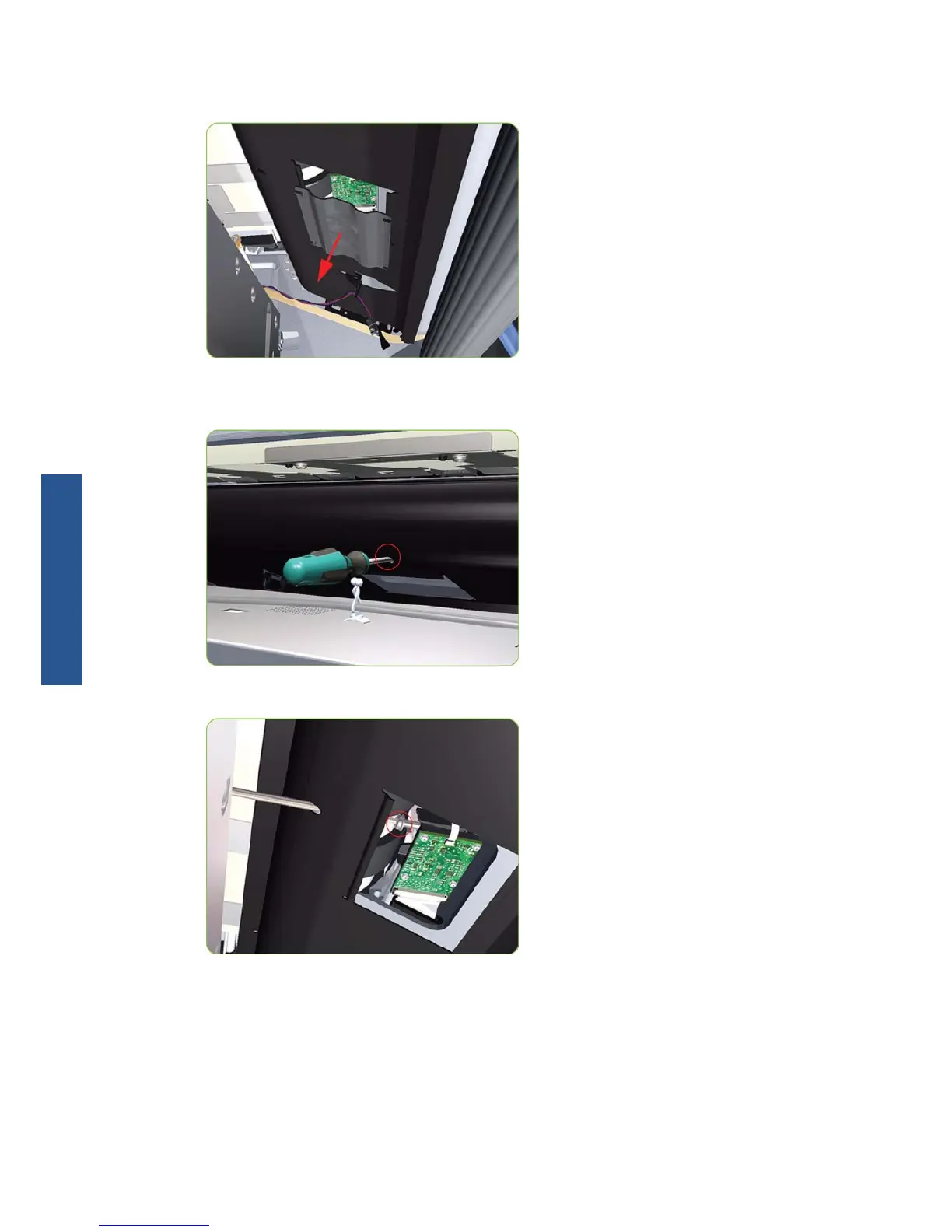

8. Remove the OMAS Access Cover the printer.
9. Insert the T-20 thin bladed torx screwdriver (supplied with the replacement OMAS) into the access
hole at the rear of the printer.
10. Remove and discard one T-20 screw which secures the OMAS horizontally to the printer.
318 Chapter 8 Removal and installation ENWW
Removal and
installation
