4. Both models
Remove media if installed.

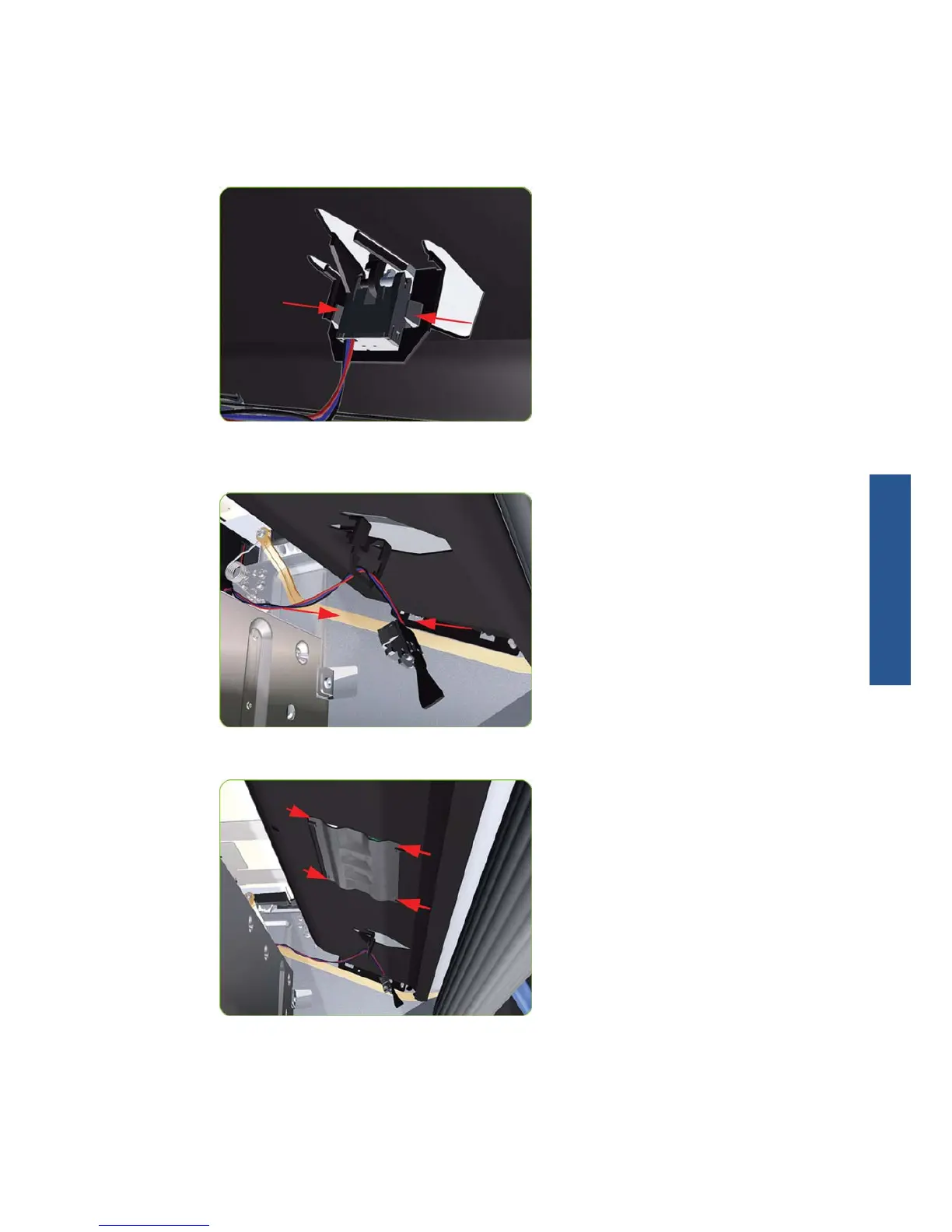

5. Squeeze the clips to unclip the Media Sensor from the Center Guide.
6. Let the Media Sensor hang below the Center Guide. This is to ensure it does not get damaged by
the ribbon cable of the OMAS during the removal procedure.
7. Squeeze the corners of the OMAS Access Cover release it from the bottom of the printer.
