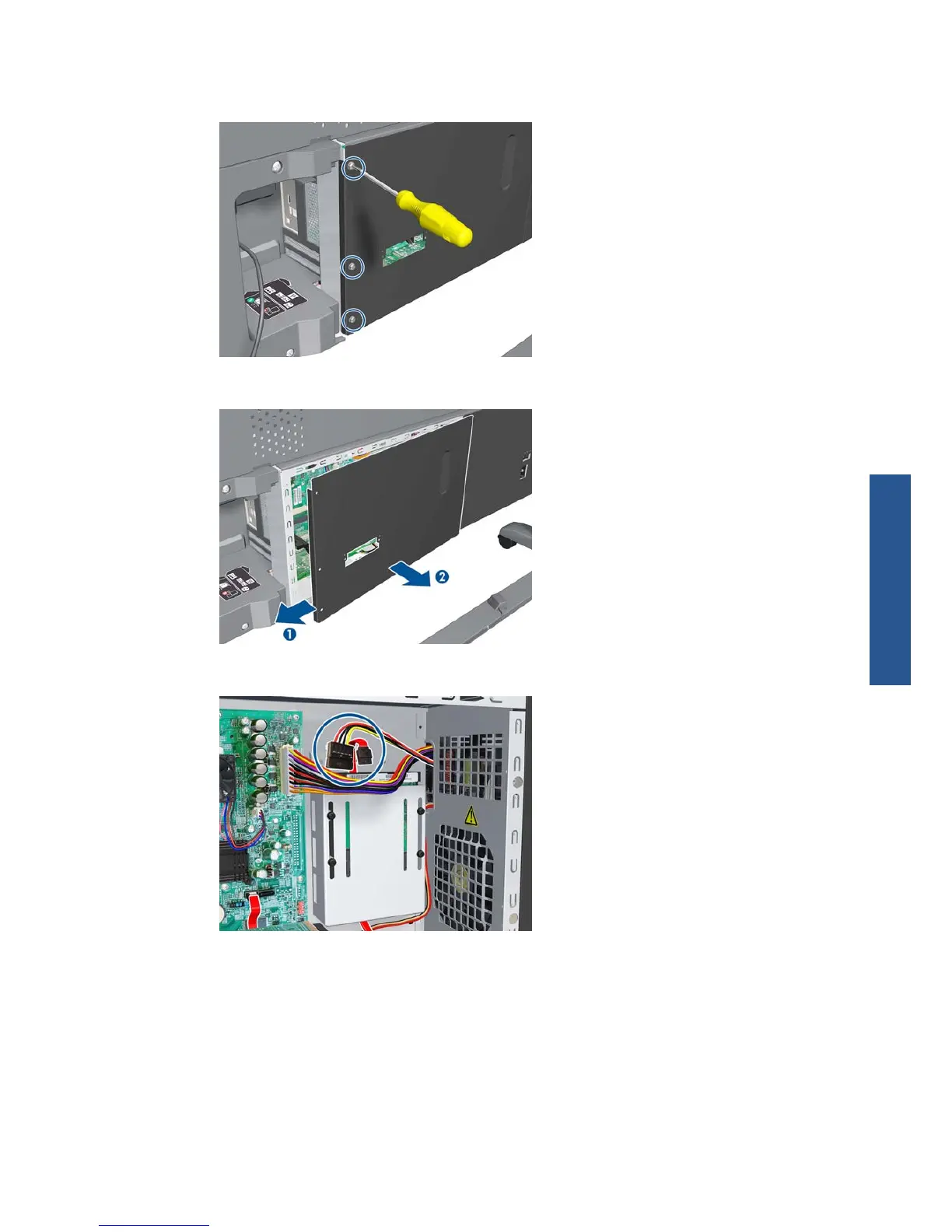

2. Remove three T-20 screws that secure the Formatter cover.
3. Remove the Formatter Cover from the printer.
4. Disconnect the power and data cables connected to the Hard Disk Drive.
ENWW
Disassembly order
341
Removal and
installation
