6. Remove the Service Station See Service Station on page 252.
7. Remove the Ink Supply Station
See Ink Supply Station (ISS) on page 276.
8. Remove the Media Sensor
See Media Lever Sensor on page 386.

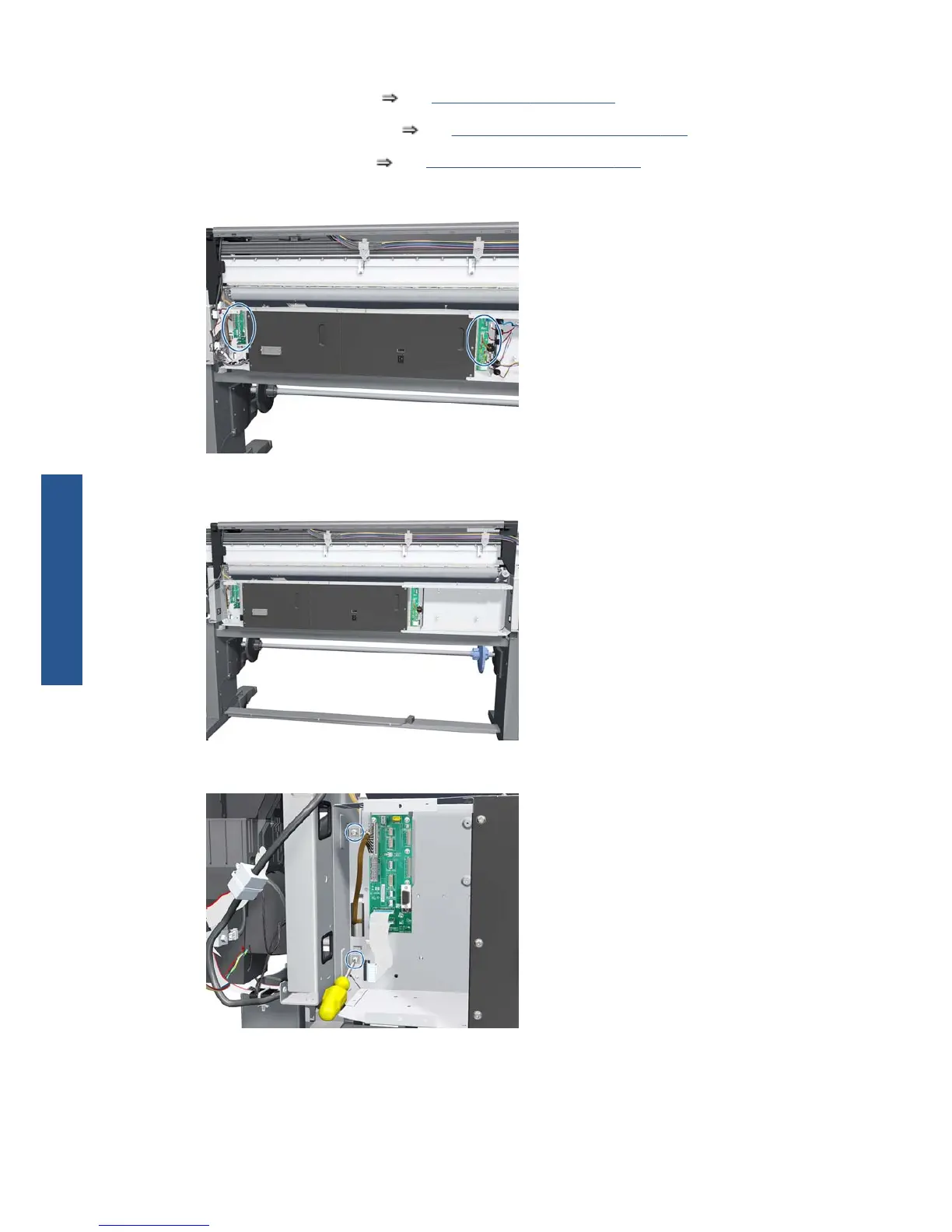

9. Disconnect ALL the cables connected to the right Interconnect PCA and the Main PCA.
10. Unroute all the disconnected cables so they are clear of the Electronics Module.
11. Remove two T-20 screws (Type B) that secure the right side Electronics Module.
396 Chapter 8 Removal and installation ENWW
Removal and
installation
