Operations 27
5.

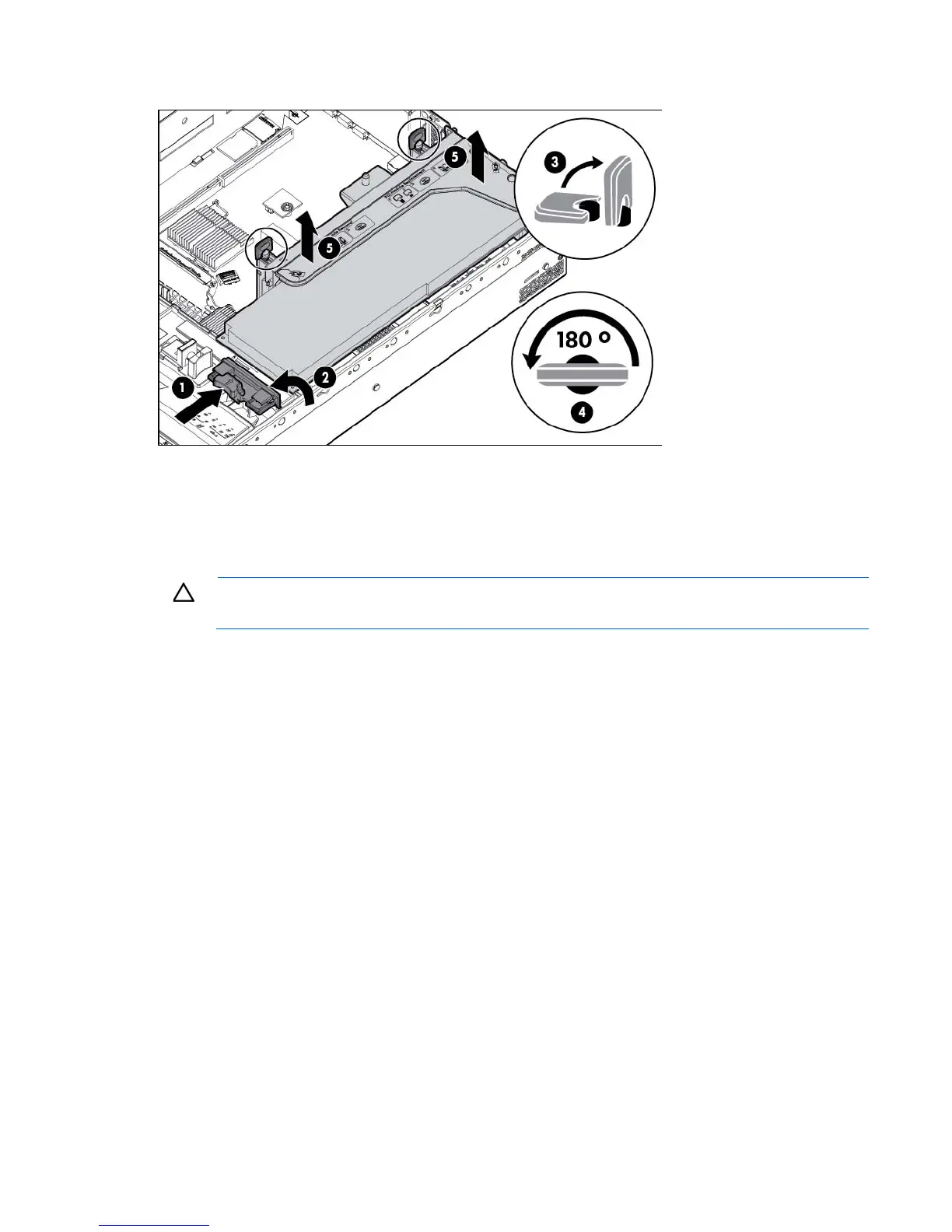

Release the full-length expansion board retainer, and then remove the PCI riser cage.
6. Remove the full-length expansion board.
To replace the component, reverse the removal procedure.
Remove the PCI riser cage
CAUTION: To prevent damage to the server or expansion boards, power down the server and
remove all AC power cords before removing or installing the PCI riser cage.
1. Power down the server (on page 21).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Extend the server from the rack (on page 21).
4. Remove the access panel (on page 22).
