Hardware options installation 46
16.

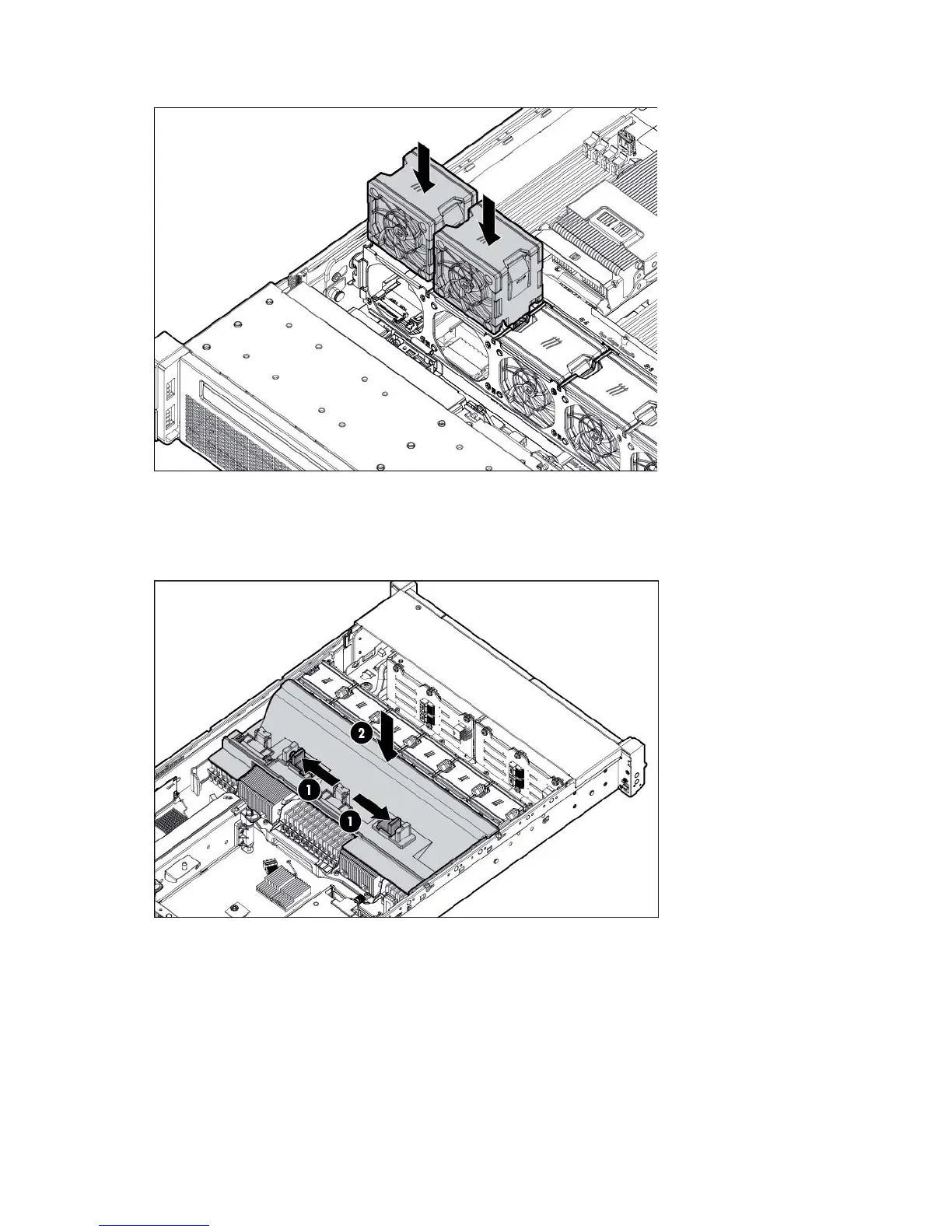

Install the two additional fans included with the processor.
You can install memory ("Installing a DIMM" on page 52) on the second processor. HP recommends
balancing memory between both processors for improved performance. For more information on
memory configurations, see "Memory Options (on page 47)."
17. Install the air baffle ("Remove the air baffle" on page 30).
18. Install any full-length expansion boards ("Installing a full-length expansion board" on page 66), if
previously removed.
19. Install the access panel (on page 23).
20. Install the server into the rack ("Installing the server into the rack" on page 36).
21. Connect each power cord to the server.
22. Connect each power cord to the power source.
23. Power up the server (on page 21).
