HP DL380P

Hardware options installation 63
3.
Remove any attached network cables.
4. Extend the server from the rack (on page 21).
5. Remove the access panel (on page 22).

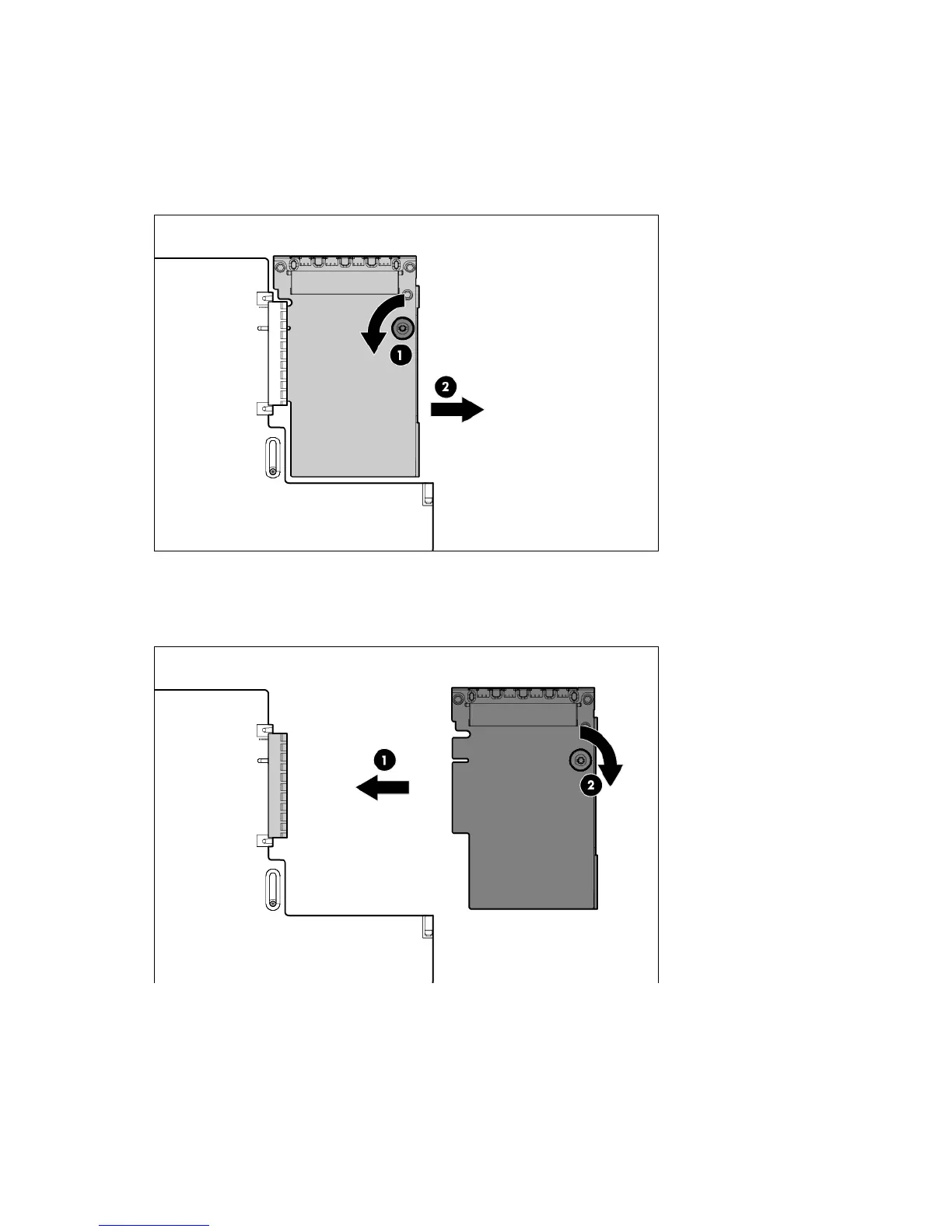

6. Loosen the thumbscrew.
7. Remove the existing FlexLOM.
8. Install the component:
a. Firmly seat the FlexLOM in the slot.
b. Tighten the thumbscrew.
9. Install the access panel (on page 23).
10. Slide the server into the rack.
11. Connect the LAN segment cables.
12. Connect each power cord to the server.
