HP DL380P

Hardware options installation 65
6.

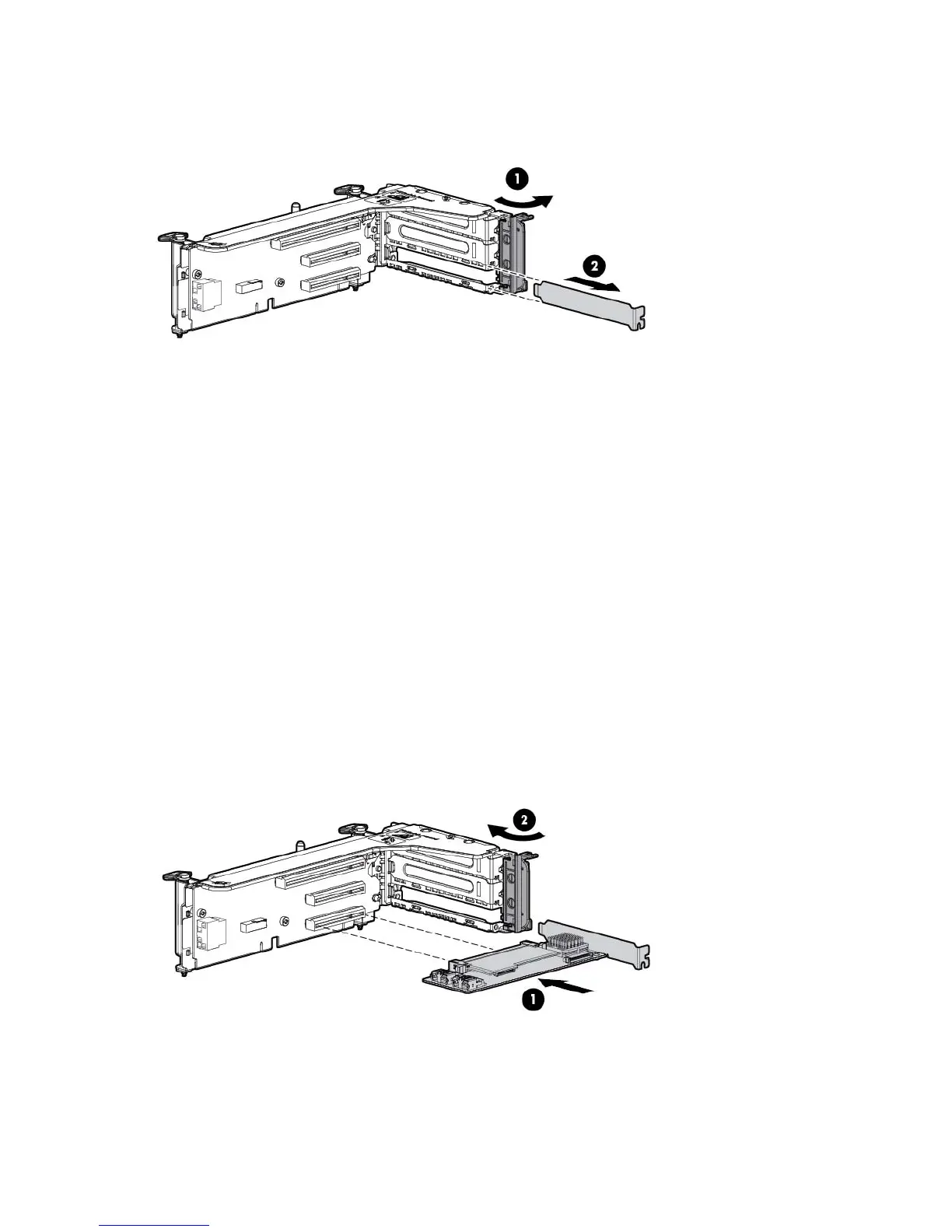

Remove the expansion slot blank.
To replace the component, reverse the removal procedure.
Installing a half-length expansion board
1. Power down the server (on page 21).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Extend the server from the rack (on page 21).
4. Remove the access panel (on page 22).
5. Remove the PCI riser cage (on page 27).
6. Remove the expansion slot blank ("Removing the expansion slot blanks" on page 64).
7. Install the expansion board.
8. Connect any required internal or external cables to the expansion board. See the documentation that
ships with the expansion board.
