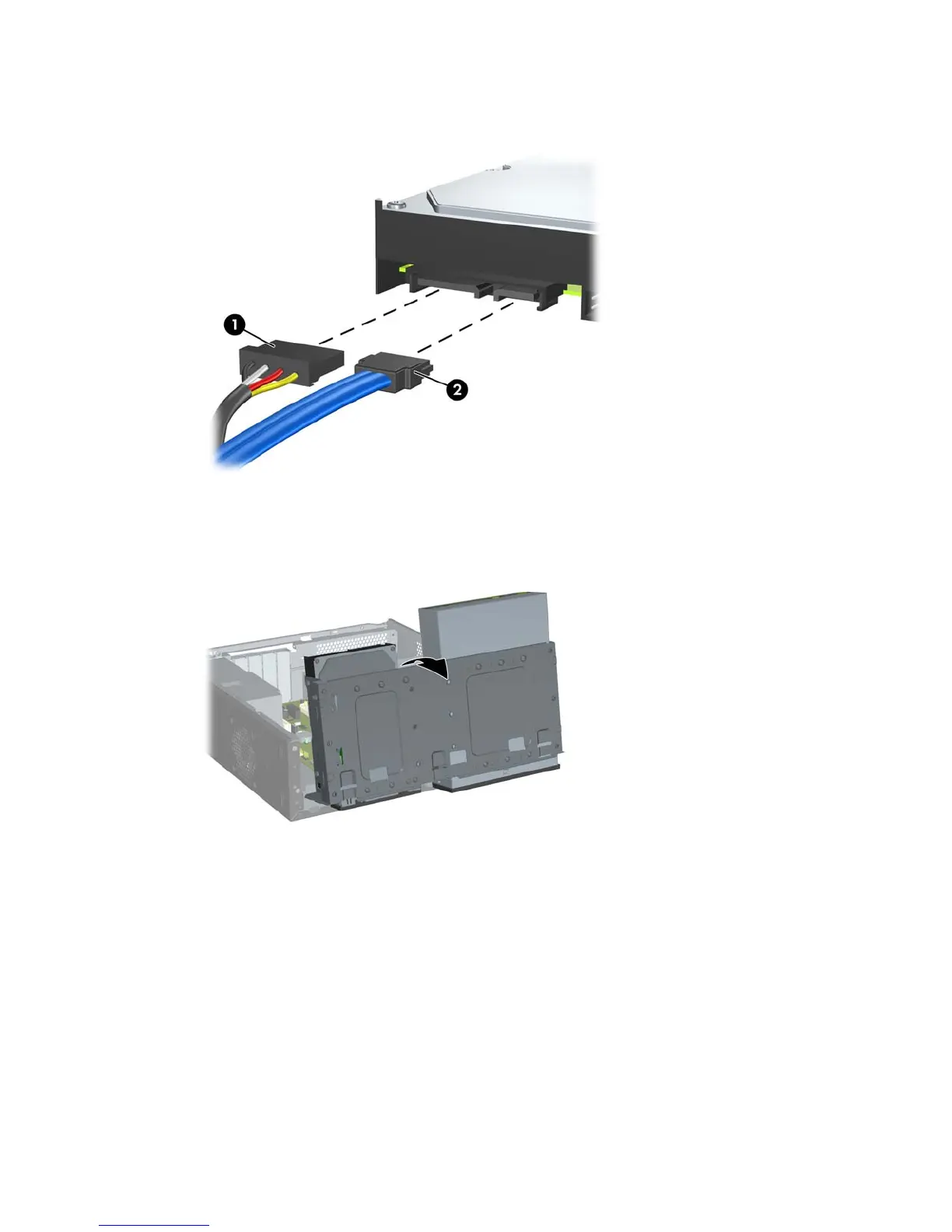

6. Disconnect the power cable (1) and data cable (2) from the back of the hard drive.
Figure 2-35 Disconnecting the Hard Drive Cables
7. Rotate the drive cage all the way up.
Figure 2-36 Rotating the Drive Cage Up
ENWW Installing Additional Drives 37
