4. Secure the hard drive by fastening two retainer screws through the holes in the left side of the drive
cage into the corresponding holes in the left side of the hard drive (2).

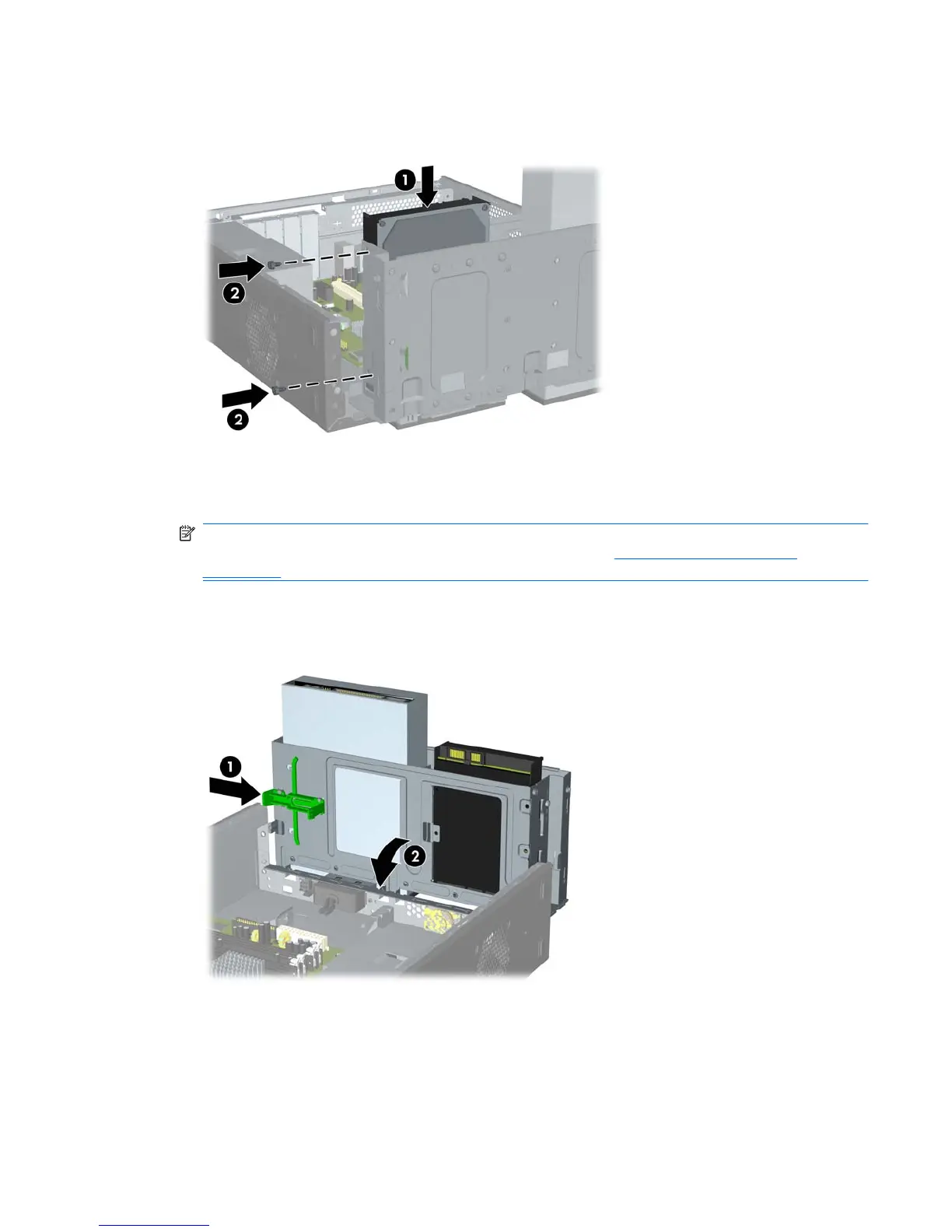

Figure 2-39 Installing an Internal Hard Drive
NOTE: Extra retainer screws are provided on the front of the chassis under the hard drive cage.
The 6-32 retainer screws for hard drives are silver. Refer to
Installing Additional Drives
on page 25 for an illustration of the retainer screws location.
5. Push in the latch holding the drive cage upright and lower the drive cage all the way down.
Figure 2-40 Lowering the Drive Cage
ENWW Installing Additional Drives 39
