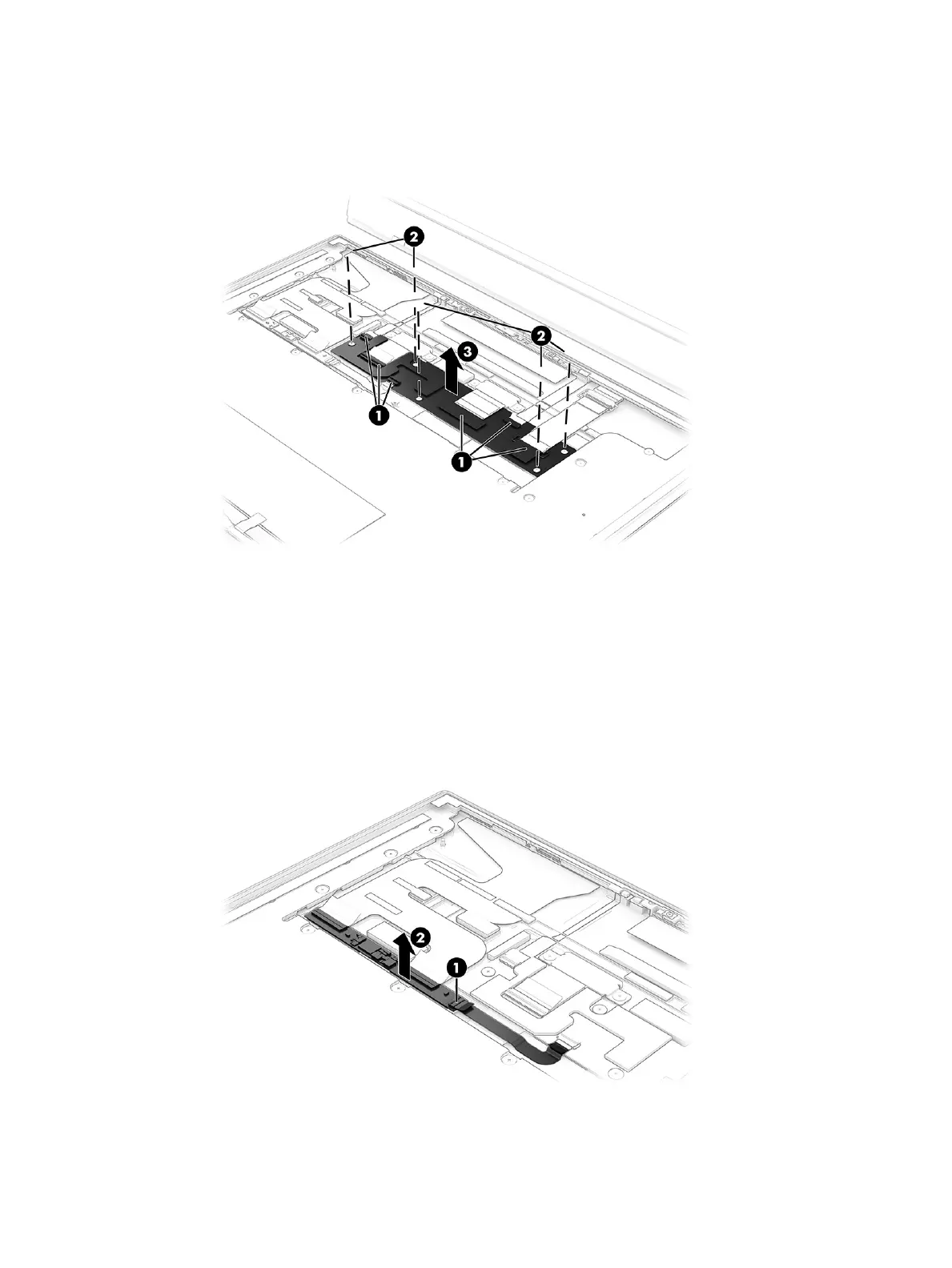

a. Disconnect the six cables from the board (1).
b. Remove the ve Phillips M1.4 × 1.2 screws from the board (2).
c. Remove the board from the computer (3).
Transfer boards are available as spare part number M35276-001 for privacy models and M35277-001
for nonprivacy models.
3. To remove the touch board from the display rear cover:
a. Disconnect the cable from the ZIF connector on the end of the board (1).
b. Use a tool to release the board from the inside of the display rear cover (2). The board is secured
with adhesive.
The touch control board is available as spare part number M35278-001.
4. To remove the camera module from the display rear cover:
50 Chapter 6 Removal and replacement procedures for authorized service provider parts
