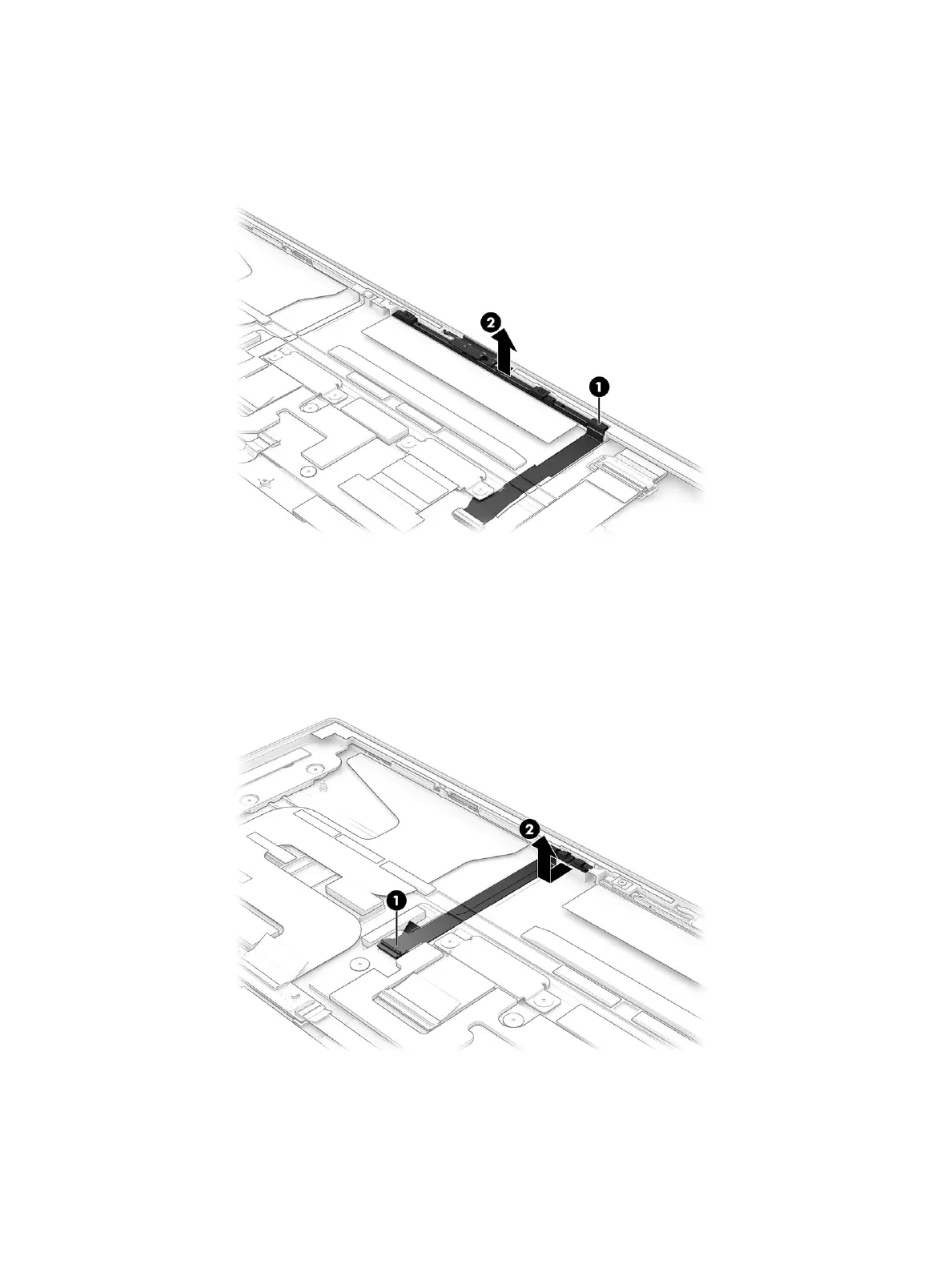

a. Disconnect the cable from the camera module (1).
b. Use a tool to release the module from the inside-top of the display rear cover (2). The module is
secured with adhesive.
The camera module is available as spare part number M35270-001.
5. To remove the ambient light sensor board from the display rear cover:
a. Disconnect the cable from the ZIF connector on the transfer board (1).
b. Use tweezers to release the board from the inside-top of the display rear cover (2). The board is
secured with adhesive.
The ambient light sensor is available in the Display Cable Kit as spare part number M35258-001.
Reverse this procedure to reassemble and install the display assembly.
