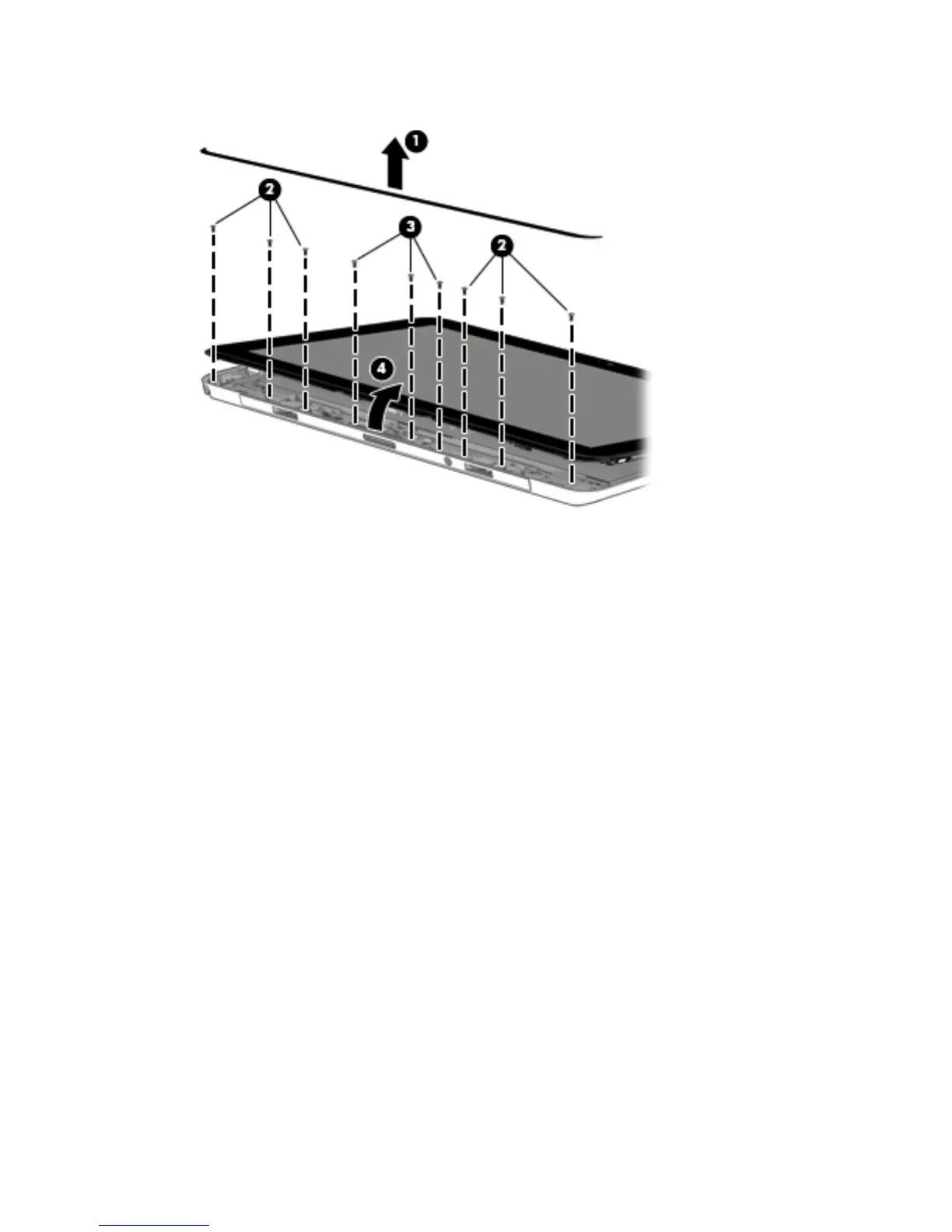

4. Lift the bottom edge (4) of the display panel assembly until it separates from the bottom cover.
5. Release the zero insertion force (ZIF) connector (1) to which the TouchScreen board cable is attached,
and then disconnect the TouchScreen board cable from the system board.
6. Release the adhesive strip (2) that secures the display panel cable connector to the system board.
7. Disconnect the display panel cable (3) from the system board.
8. Release the ZIF connector (4) to which the digitizer board cable is attached, and then disconnect
the digitizer board cable from the system board.
36 Chapter 5 Removal and replacement procedures – slate
