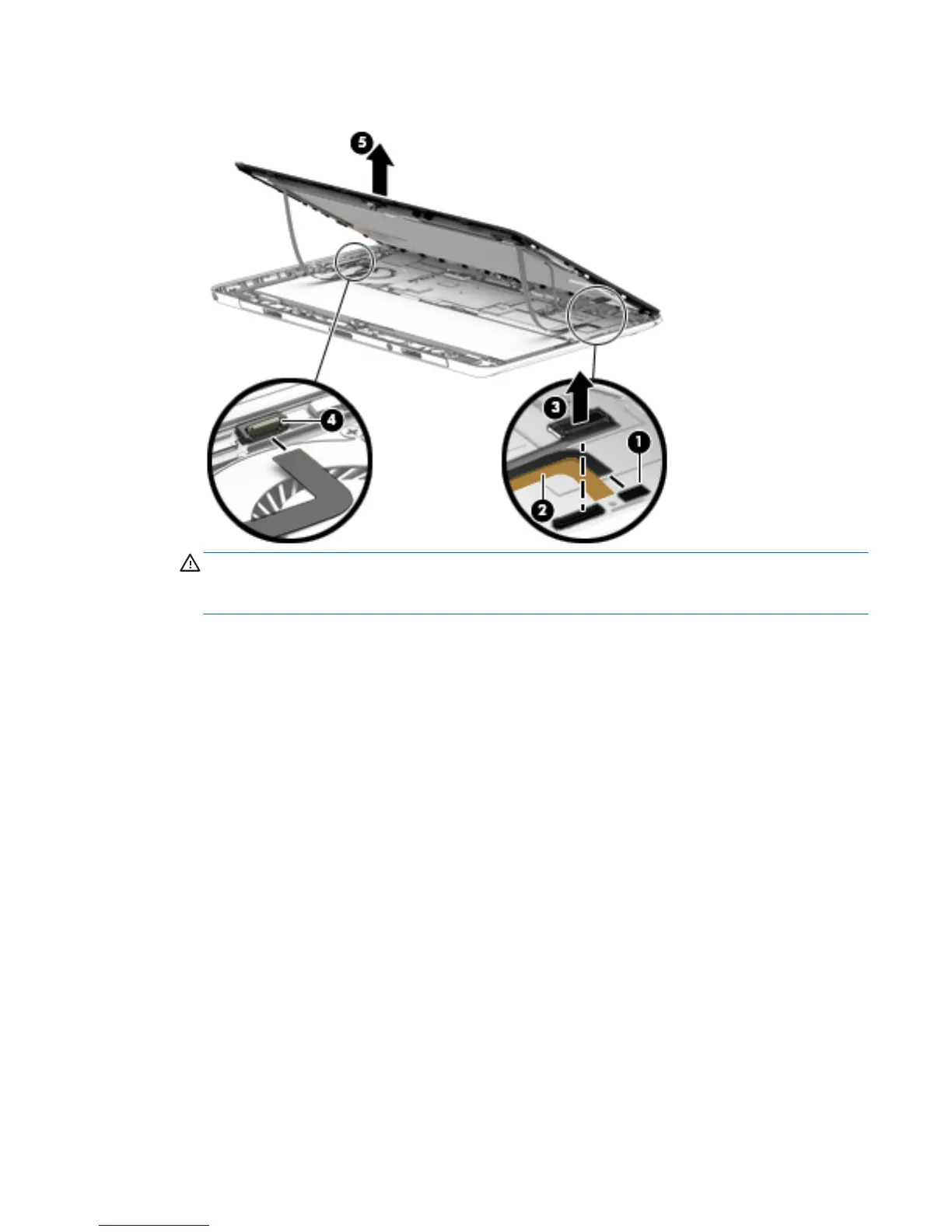

9. Remove the display panel assembly (5).
CAUTION: Before turning the display panel upside down, make sure the work surface is clear of tools,
screws, and any other foreign objects. Failure to follow this caution can result in damage to
the display panel assembly.
10. If it is necessary to replace the display panel cable:
a. Turn the display panel assembly upside down with the docking connector toward you.
b. Release the adhesive strip (1) that secures the display panel cable connector to
the display panel assembly.
c. Disconnect the display panel cable (2) from the display panel.
Display panel assembly 37
