Smart card reader
Description Spare part number
Smart card reader (includes cable) 739566-001
Before removing the smart card reader, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Bottom cover (see
Bottom cover on page 35)
5. Remove the battery (see
Battery on page 41).
Remove the smart card reader:

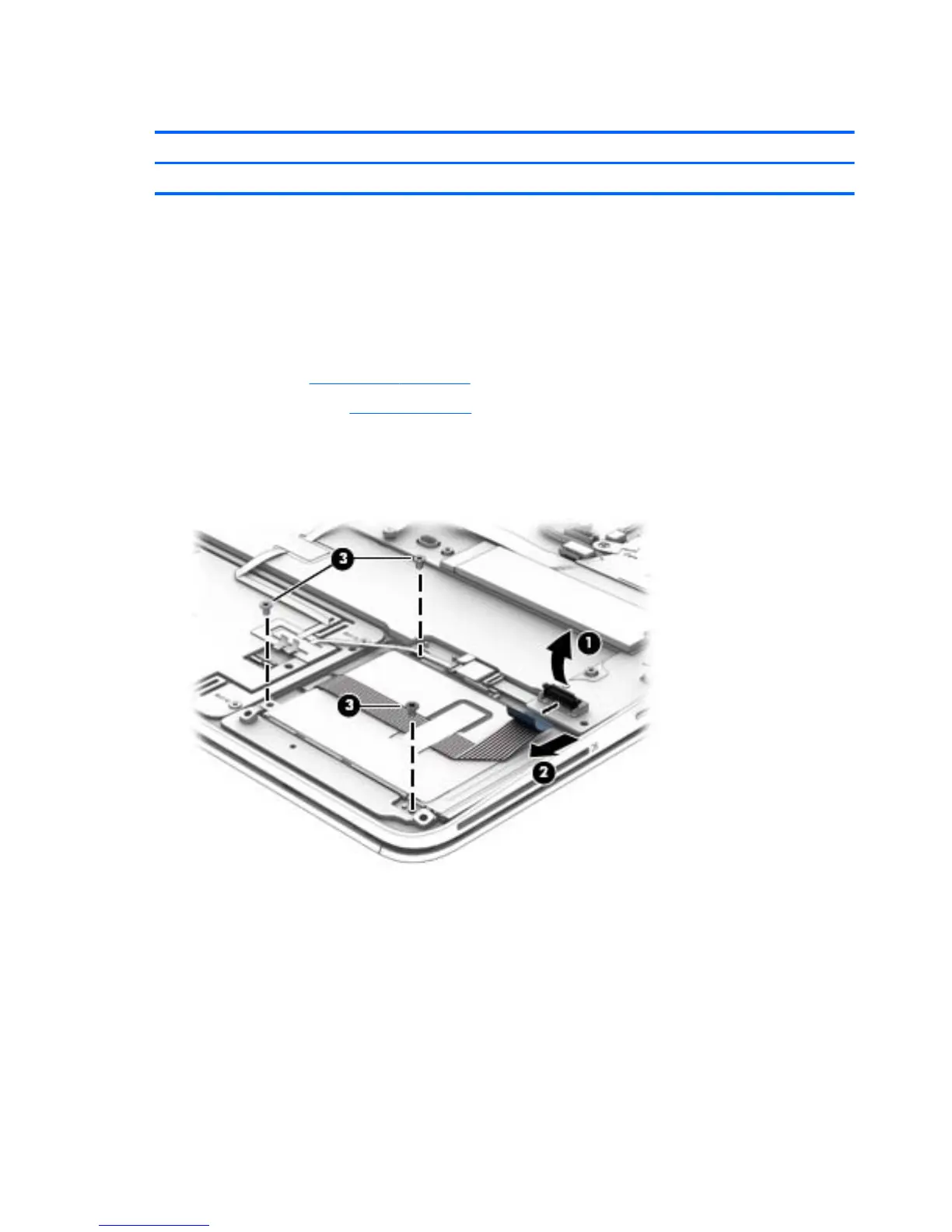

1. Lift the system board connector (1), and then disconnect the cable from the connector (2).
2. Remove the three Phillips PM2.0×2.5 screws (3) that secure the reader to the computer.
56 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
