6. If it is necessary to replace the display panel:

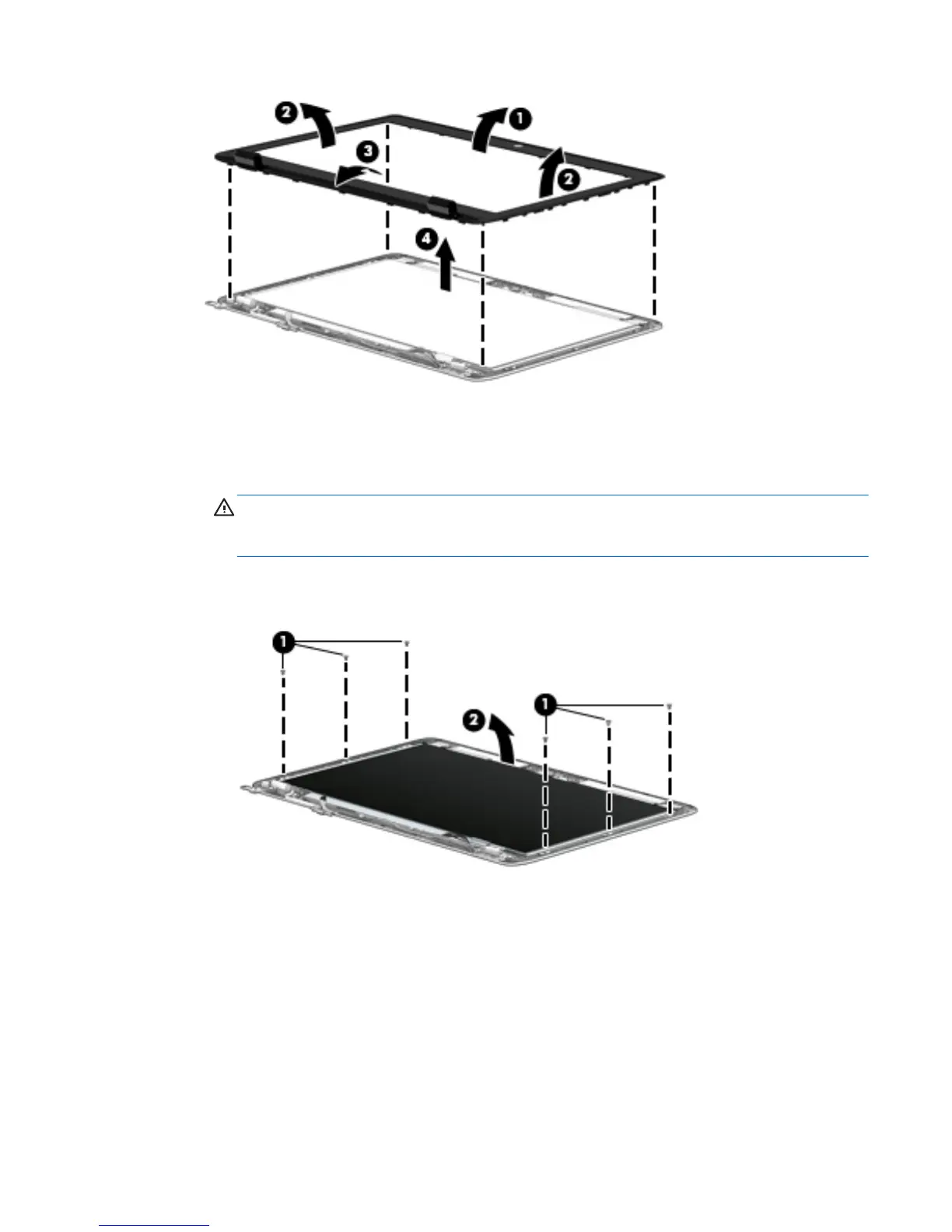

a. Remove the six Phillips PM2.0×3.25 screws (1) that secure the display panel to the
display enclosure.
CAUTION: Before turning the display panel upside down, make sure the work surface is
clear of tools, screws, and any other foreign objects. Failure to follow this caution can result
in damage to the display panel.
b. Lift the top edge of the display panel (2) and swing it up and forward until it rests upside
down in front of the display enclosure.
c. Release the adhesive strip (1) that secures the display panel cable connector to the
display panel.
ENWW
Component replacement procedures
101
