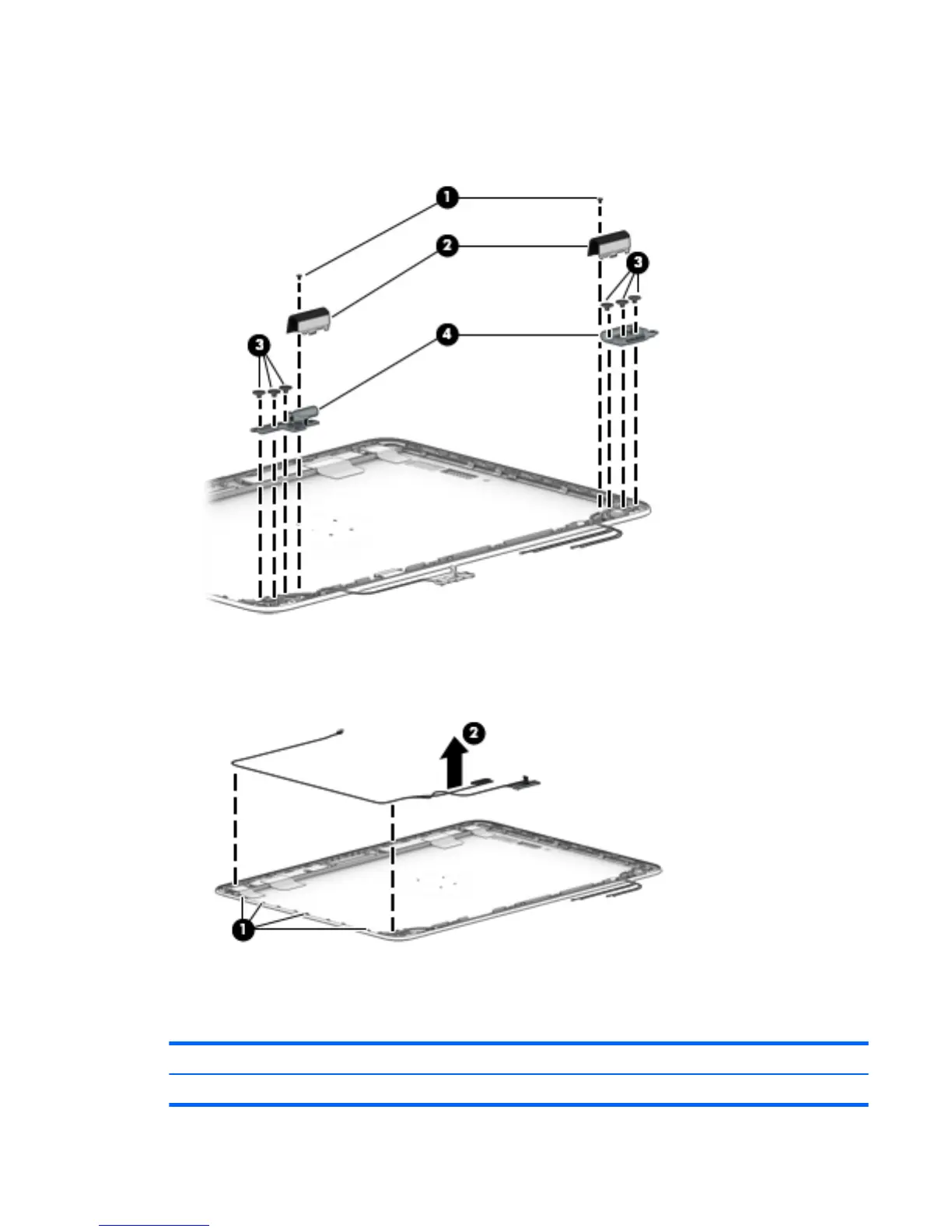

12. Remove the 6 Phillips PM2.5x2.5 screws that secure the hinges to the display enclosure (3), and then
remove the display hinges from the display enclosure (4).
Display hinges are available in the Display Hinge Kit using spare part number 821674-001.
13. If it is necessary to replace the display/webcam cable, remove the display/webcam cable assembly from
the routing (1) and then lift it from the computer (2).
The display cable is available in the Cable Kit using spare part number 821669-001.
Reverse this procedure to reassemble and install the display assembly.
Top cover
Description
Spare part number
Top cover 821692-001
Component replacement procedures 65
