HP EliteBook 840 G2 Notebook PC Service Manual

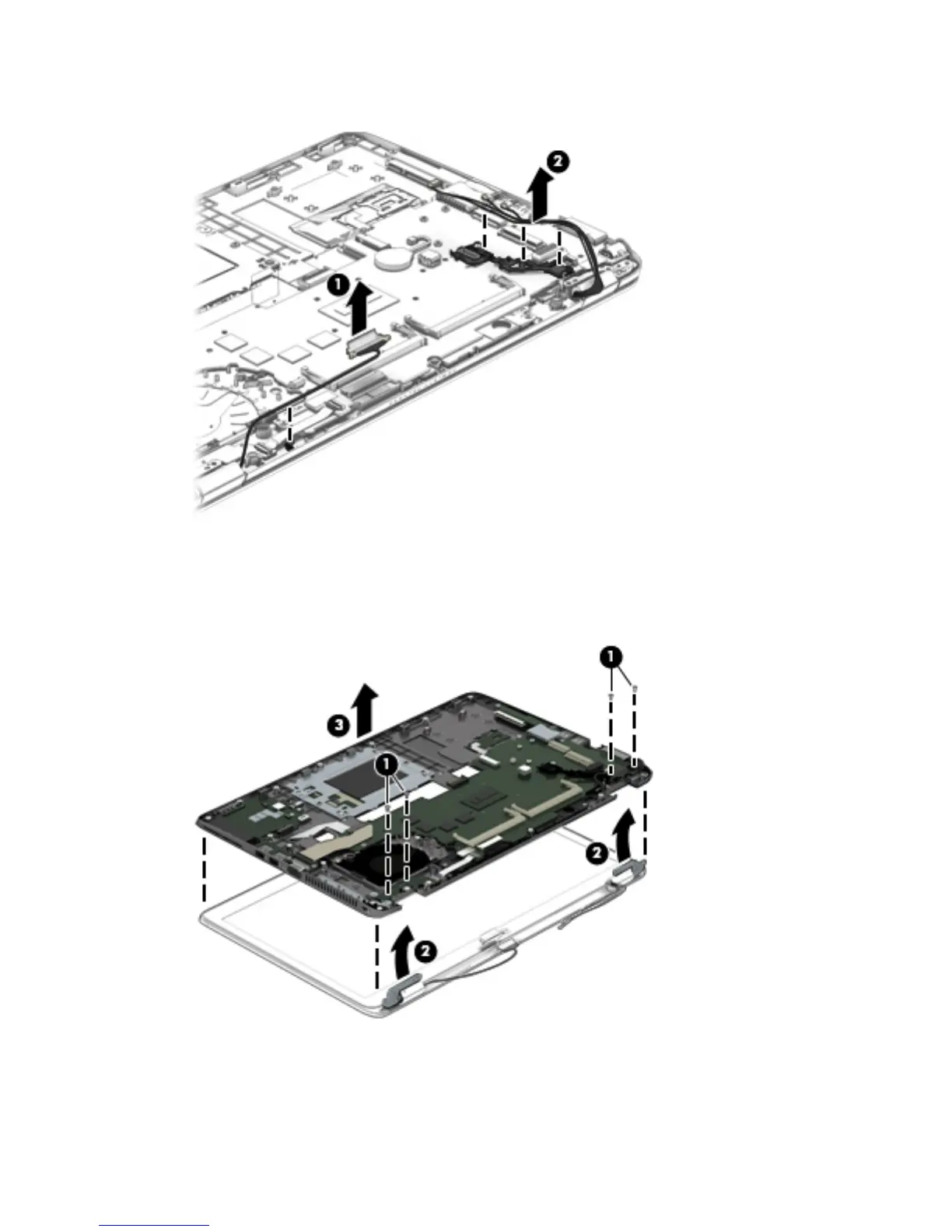

2. Release the wireless antenna cables (2) from the routing channel built into the system board.
3. Remove the four Torx TM2.5×6.0 screws (1) that secure the display panel to the top cover.
4. Rotate the display hinges (2) back until the top cover is free for removal.
5. Separate the display assembly (3) from the top cover.
6. To remove the display bezel, flex the inside edges of the bottom edge (1), the left and right sides (2),
and the bottom edge (3) of the bezel until the bezel disengages from the display enclosure.
100 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts ENWW
