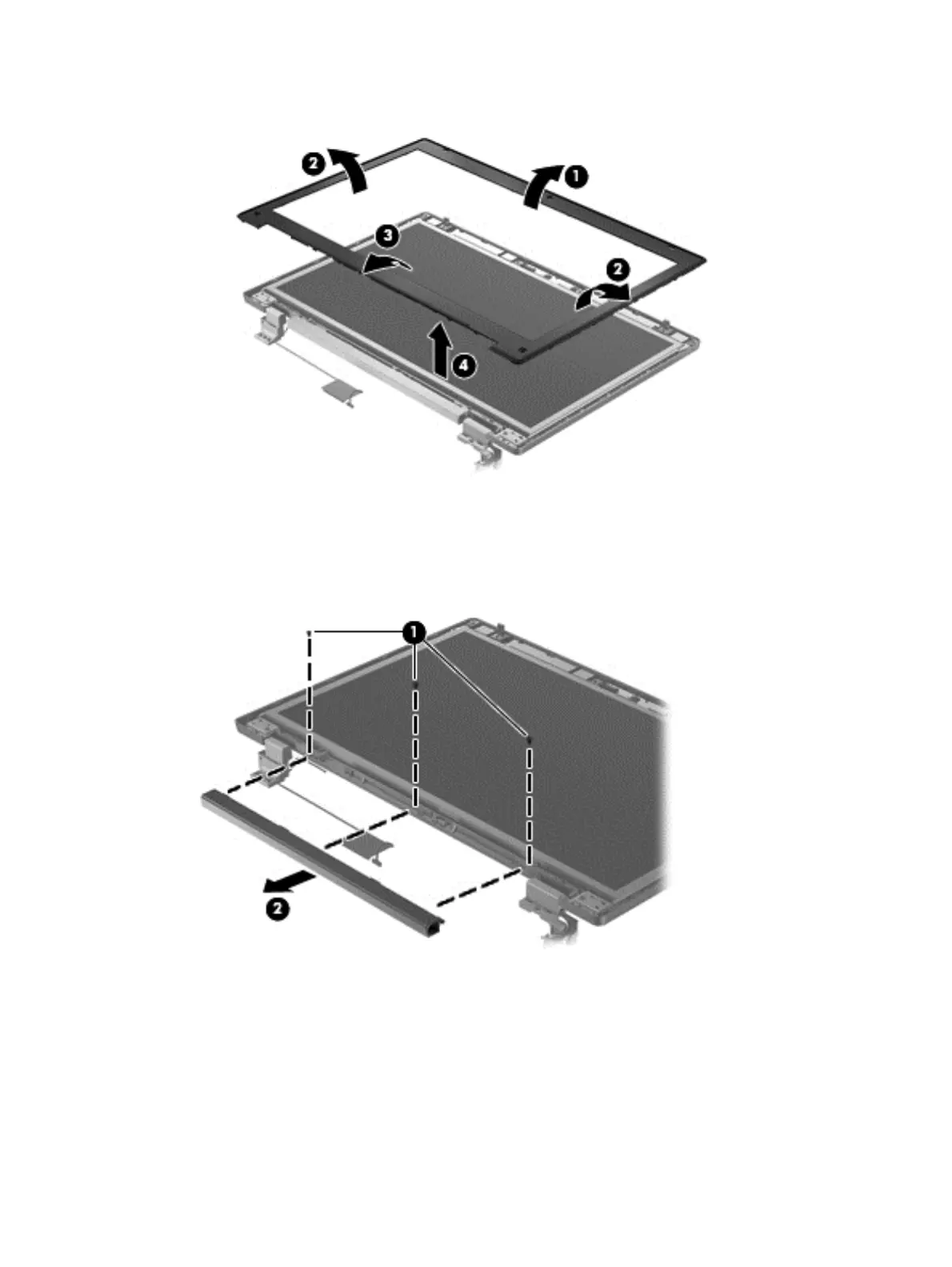

f. Remove the display bezel from the display back cover (4).
g.
12. If it is necessary to remove the cable routing tray, remove the three Phillips screws (1) that secure
the cable routing tray to the display enclosure, then pull the cable routing tray towards you (2).
The cable routing tray is available in the Plastics kit, spare part number 684794-001.
