13. Remove the six Torx 8 screws that secure the display panel to the display enclosure.

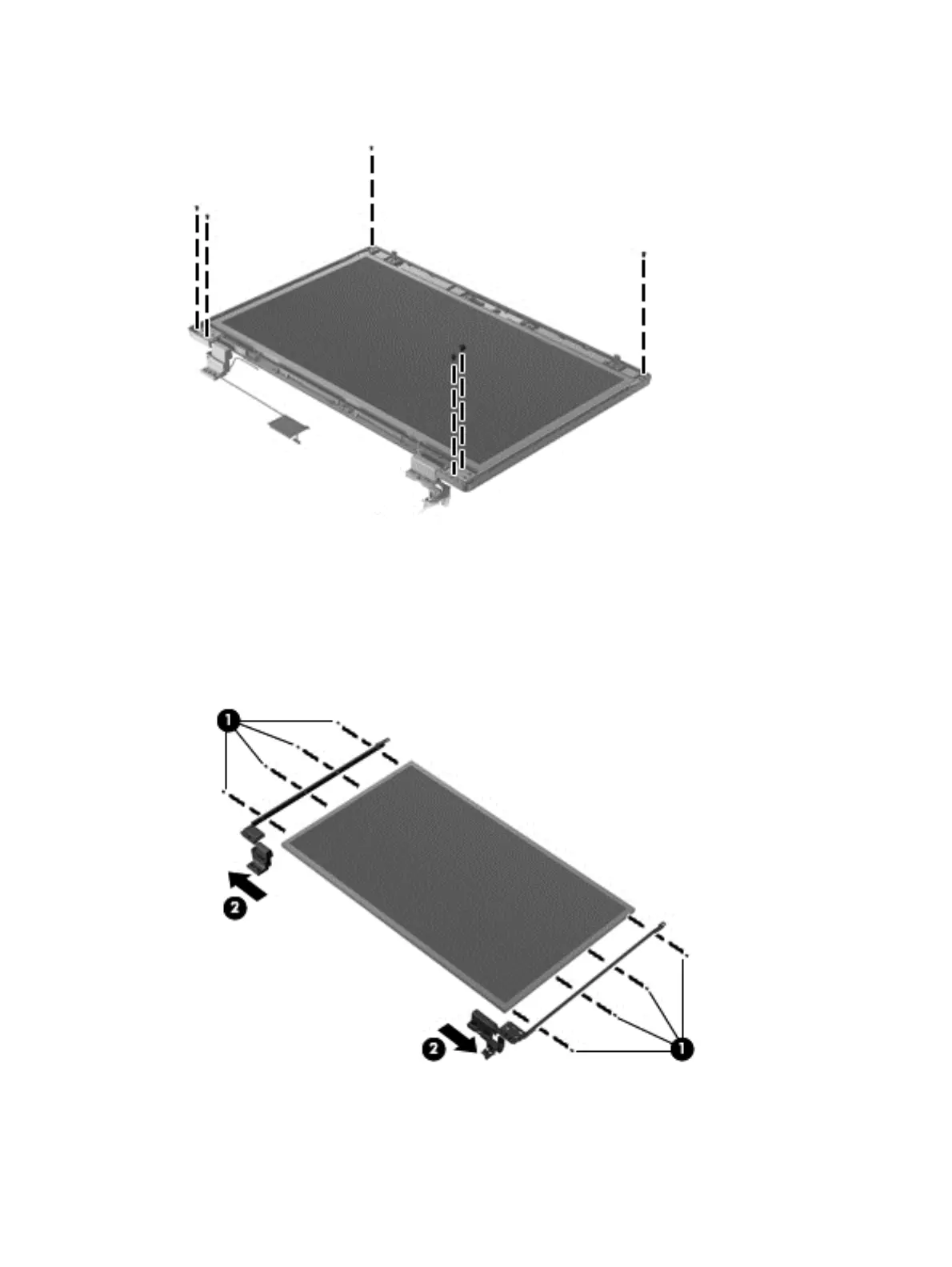

14. If it is necessary to replace the display hinges, Remove the eight Phillips screws (1) that secure the
display panel to the display hinges (four on either side). The left and right display hinges are
available using spare part number 652646-001.
a. Remove the eight Phillips screws (1) that secure the display panel to the display hinges (four
on either side).
b. Remove the display hinges (2).
136 Chapter 4 Removal and replacement procedures
