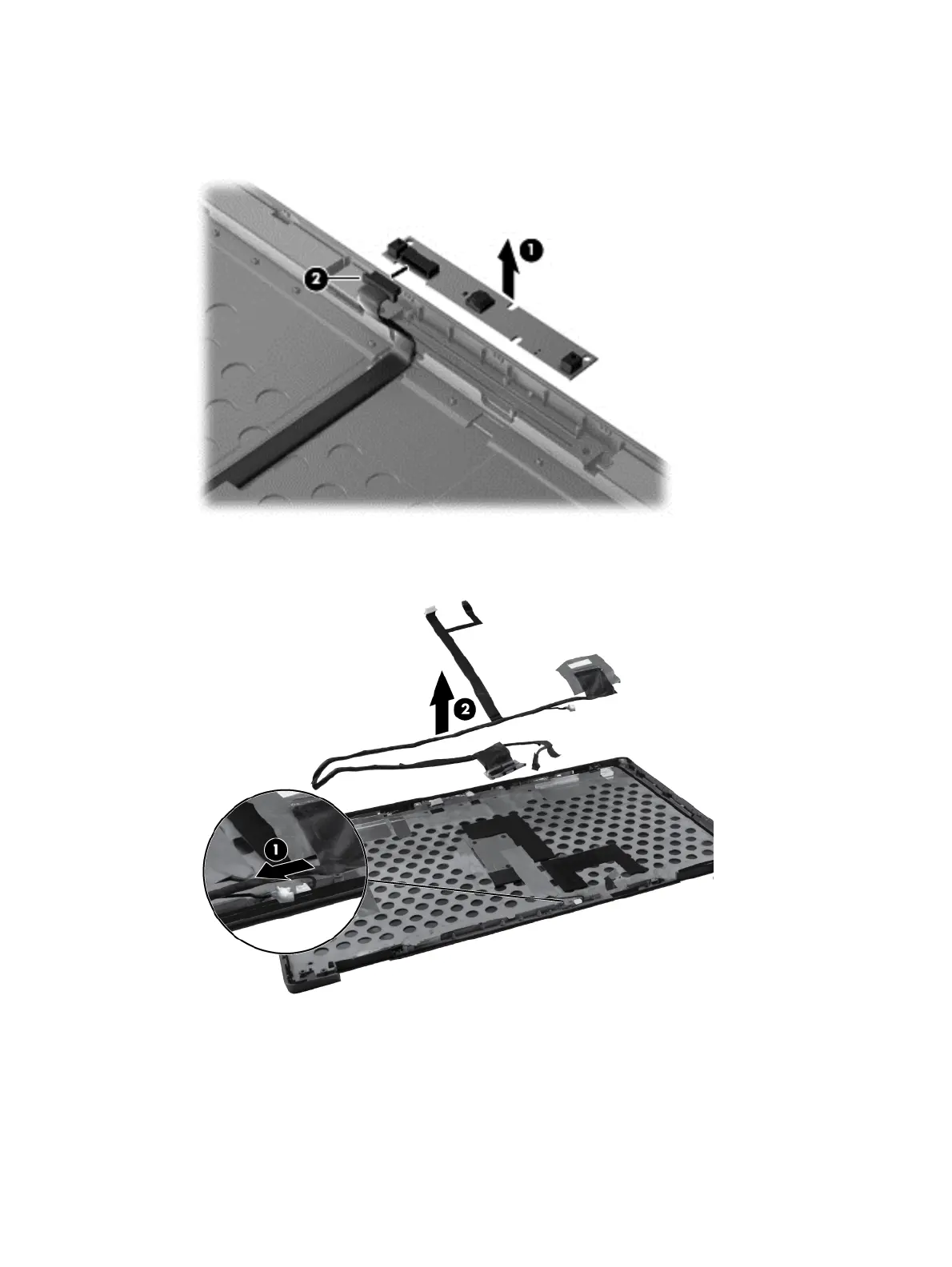

15. If it is necessary to replace the webcam module from the display enclosure, lift the webcam
module straight up (1), then pull the connector for the webcam cable and disconnect the cable
(2).
16. If it is necessary to replace the webcam cable, release the tape securing the cable to the display
cover (1), and then remove the cable (2).
Component replacement procedures
137
