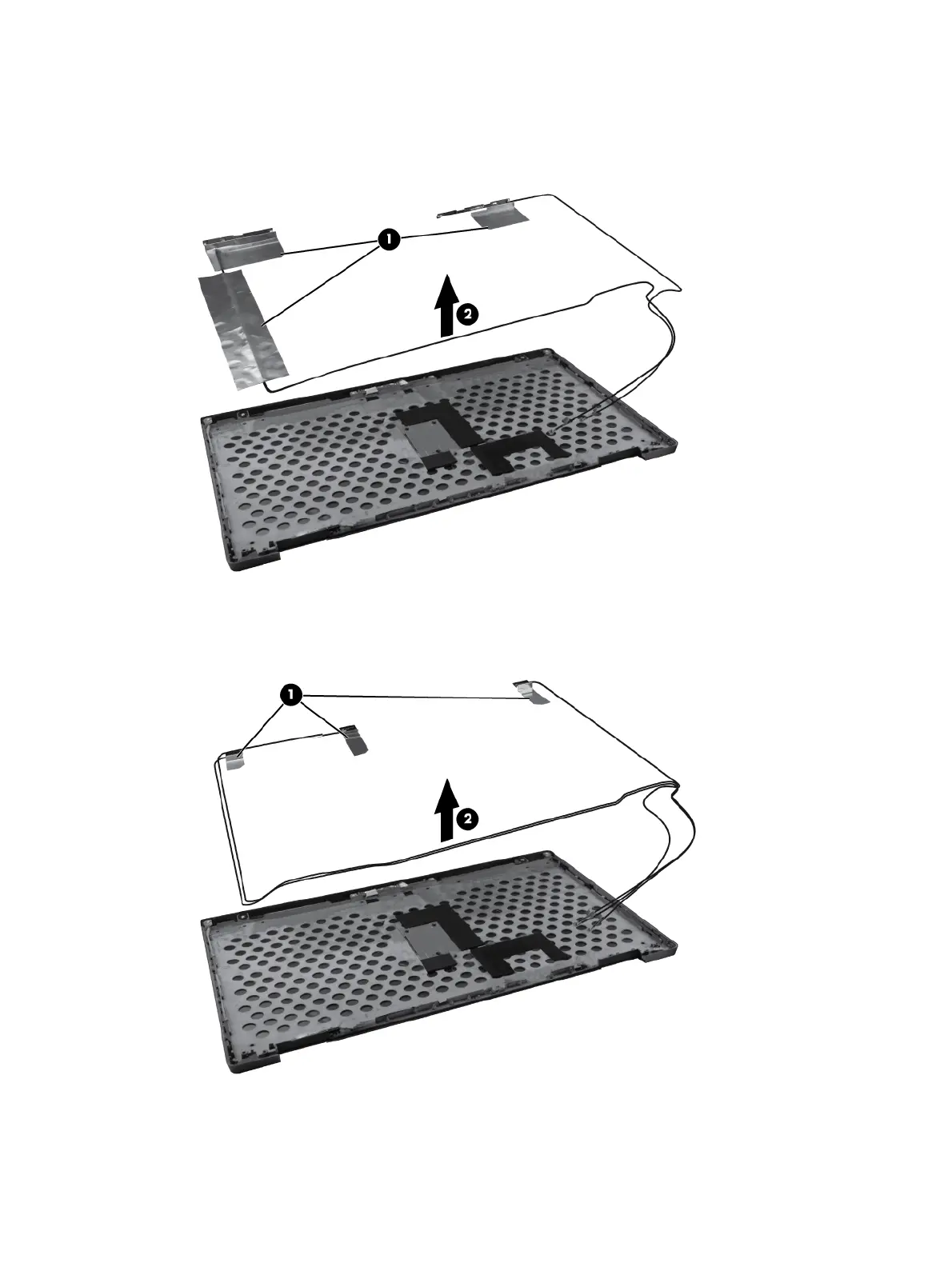

17. If it is necessary to replace the WWAN antenna cables, detach the WWAN antenna transceivers
(1) from the adhesive on the back cover, and then release the cables from the clips (2) that secure
the cables to the display back cover.
18. If it is necessary to replace the WLAN antenna cables, detach the WLAN antenna transceivers (1)
from the adhesive on the back cover, and then release the cables from the clips (2) that secure the
cables to the display back cover.
Reverse this procedure to reassemble and install the display assembly.
138 Chapter 4 Removal and replacement procedures
