3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet,
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 54).
5. Remove the service door (see
Service door on page 60).
Remove the upgrade bay hard drive:
IMPORTANT: Make special note of each screw and screw lock size and location during removal
and replacement.
1. Position the computer upside down with the front side toward you.

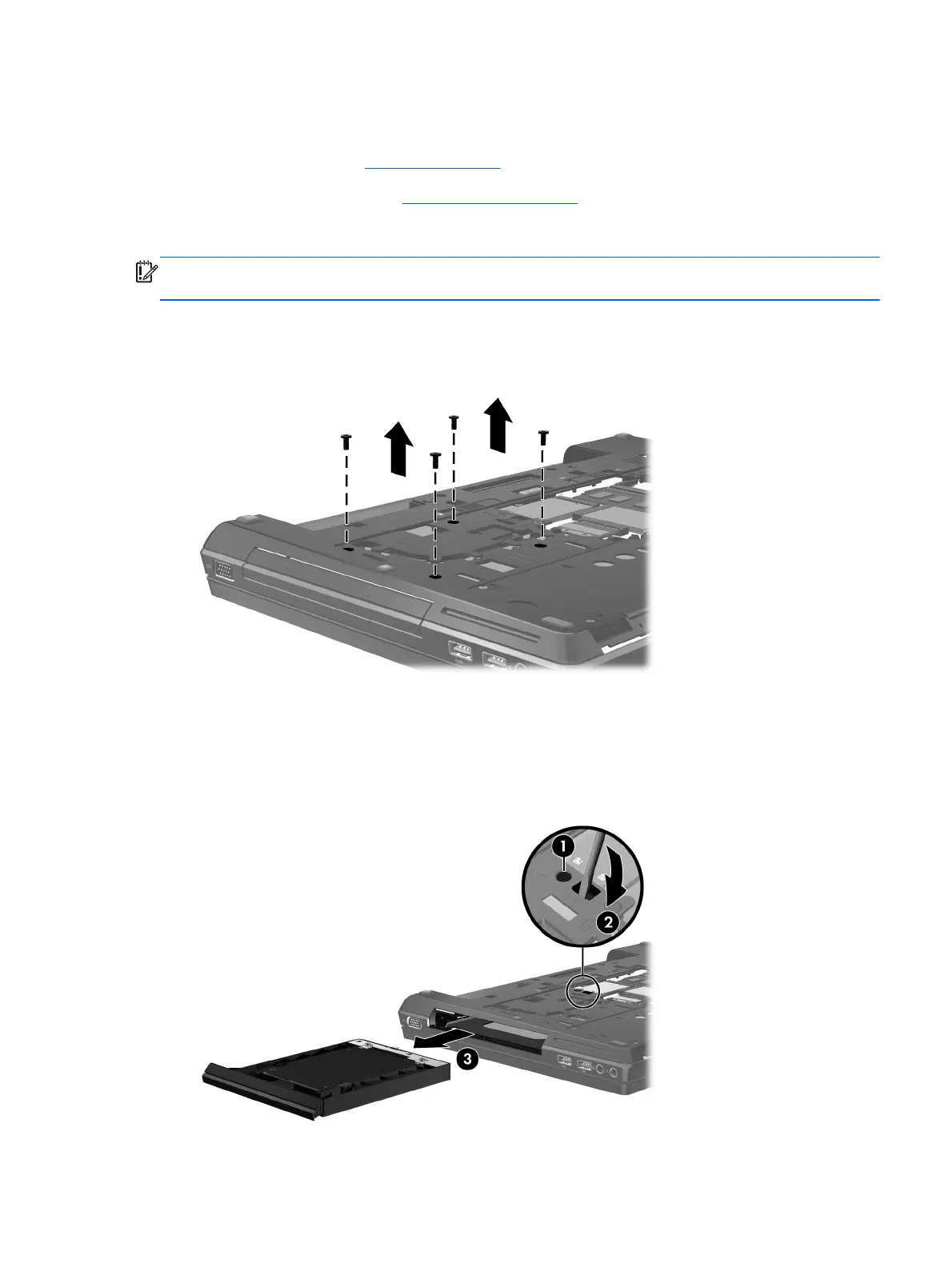

2. Remove the four Phillips screws securing the hard drive.
3. Remove the Phillips locking screw (1) that secures the upgrade bay bezel to the computer.
4. Insert a small tool (2) into the drive release opening and press the upgrade bay bezel tab to the
left.
5. Remove the upgrade bay bezel (3) from the computer.
Component replacement procedures
79
