6. If it is necessary to remove the hard drive, position the upgrade bay bezel with the front toward
you.

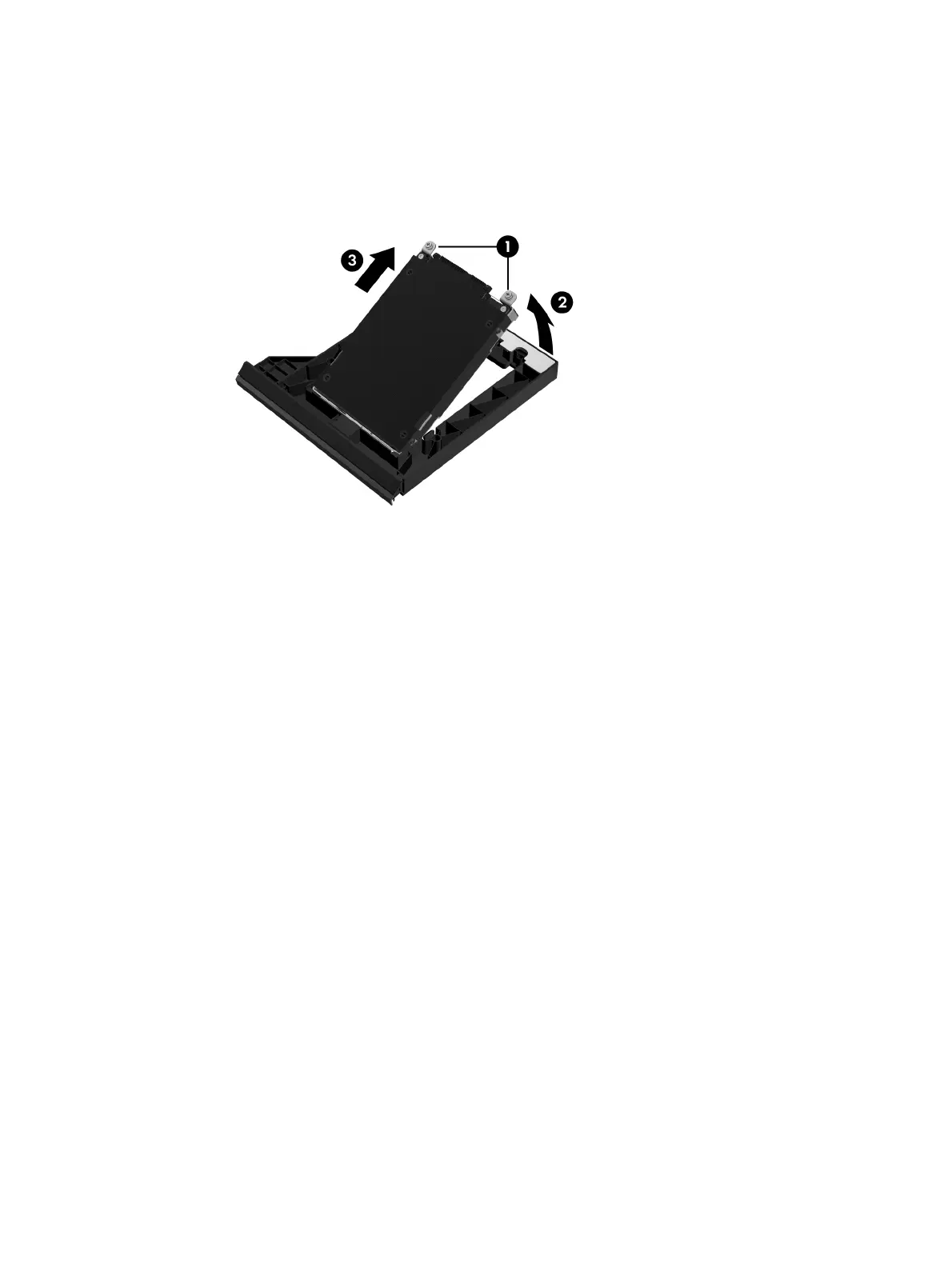

7. Loosen the two captive screws (1) that secure the hard drive to the bezel.
8. Lift the hard drive connector end up (2). Lift the hard drive out at an angle (3).
Reverse this procedure to install a hard drive in the upgrade bay.
