HP EliteBook 8760w Service Manual

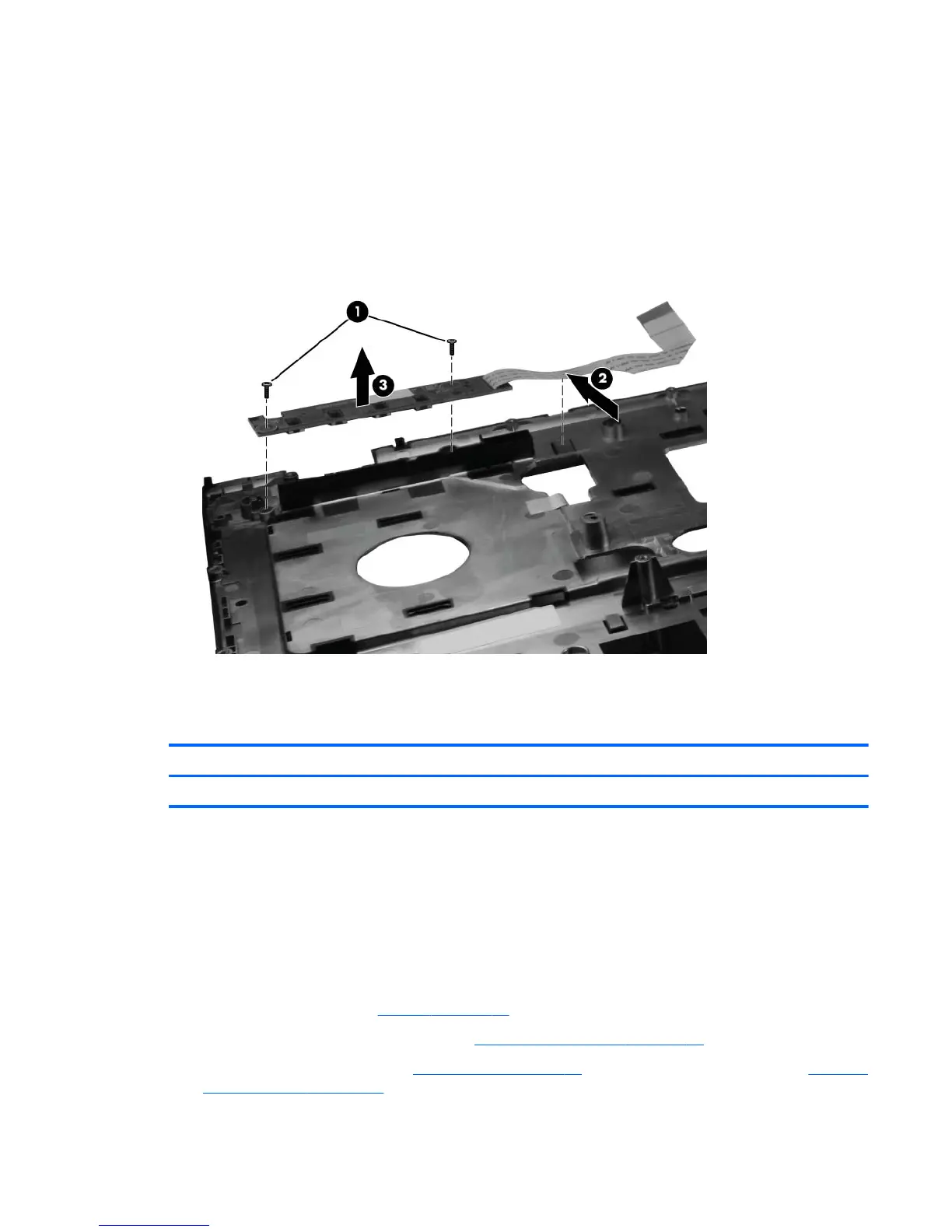

Remove the application button board:
1. Position the top cover upside down with the front toward you.
2. Remove the two Phillips M2.5x3.0 screws (1) that secure the application button board to the top
cover.
3. Slide the application button board cable (2) out from the clip in the top cover.
4. Remove the application button board (3).
Reverse this procedure to install the application button board.
Fingerprint reader
Description Spare part number
Fingerprint reader 655545-001
Before removing the fingerprint reader, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 45)
5. Remove the service access cover (see
Service access cover on page 46).
6. Remove the optical drive (see
Optical drive on page 58) or upgrade bay hard drive (see Upgrade
bay hard drive on page 60).
Component replacement procedures 95

HP EliteBook 8760w Specifications

General

Bus type	DMI
Stepping	D2
Tjunction	100 °C
Processor cache	6 MB
Processor cores	4
Processor model	i7-2630QM
System bus rate	5 GT/s
Processor family	Intel® Core™ i7
Processor series	Intel Core i7-2600 Mobile Series
Processor socket	Socket 988
Processor threads	8
Processor codename	Sandy Bridge
Processor frequency	2 GHz
Processor cache type	Smart Cache
Processor lithography	32 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	2.0
Processor boost frequency	2.9 GHz
Processor operating modes	64-bit
ECC supported by processor	No
PCI Express configurations	1x16, 2x8, 1x8+2x4
Thermal Design Power (TDP)	45 W
CPU multiplier (bus/core ratio)	20
Maximum number of PCI Express lanes	16
Motherboard chipset	Intel® QM67 Express
HDD speed	7200 RPM
HDD interface	SATA
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Total storage capacity	500 GB
Compatible memory cards	MMC, SD
Number of HDDs installed	1
Display diagonal	17.3 \
Native aspect ratio	16:9
Power supply type	AC/DC
Graphics card family	AMD
Intel segment tagging	Enterprise
Operating temperature (T-T)	41 - 95 °F
Compliance industry standards	IEEE802.3, IEEE802.3u, IEEE802.3ab
Memory slots	4x SO-DIMM
Internal memory	8 GB
Memory clock speed	1333 MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	16 GB
Pointing device	Touchpad + Pointing Stick
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.1+EDR
Cabling technology	10/100/1000Base-T(X)
Networking features	Gigabit Ethernet
Operating system installed	Windows 7 Professional
Charging port type	DC-in jack
USB 2.0 ports quantity	2
CardBus PCMCIA slots quantity	0
AC adapter power	200 W
Battery capacity	83 Wh
Sustainability certificates	ENERGY STAR
Product color	Silver
Country of origin	China
On-board graphics card ID	0x116
Discrete graphics card model	AMD FirePro M5950
On-board graphics card model	Intel® HD Graphics 3000
On-board graphics card family	Intel® HD Graphics
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
Processor code	SR02Y
Processor ARK ID	52219
Processor package size	37.5 x 37.5 (rPGA998) mm
Supported instruction sets	AVX
Intel Identity Protection Technology version	1.00

Weight and Dimensions

Depth	272.7 mm
Width	416.5 mm
Height	37.4 mm
Weight	3470 g
