HP EliteBook 8760w - Cables, Kits, and Part Numbers
154 pages
Manual
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...

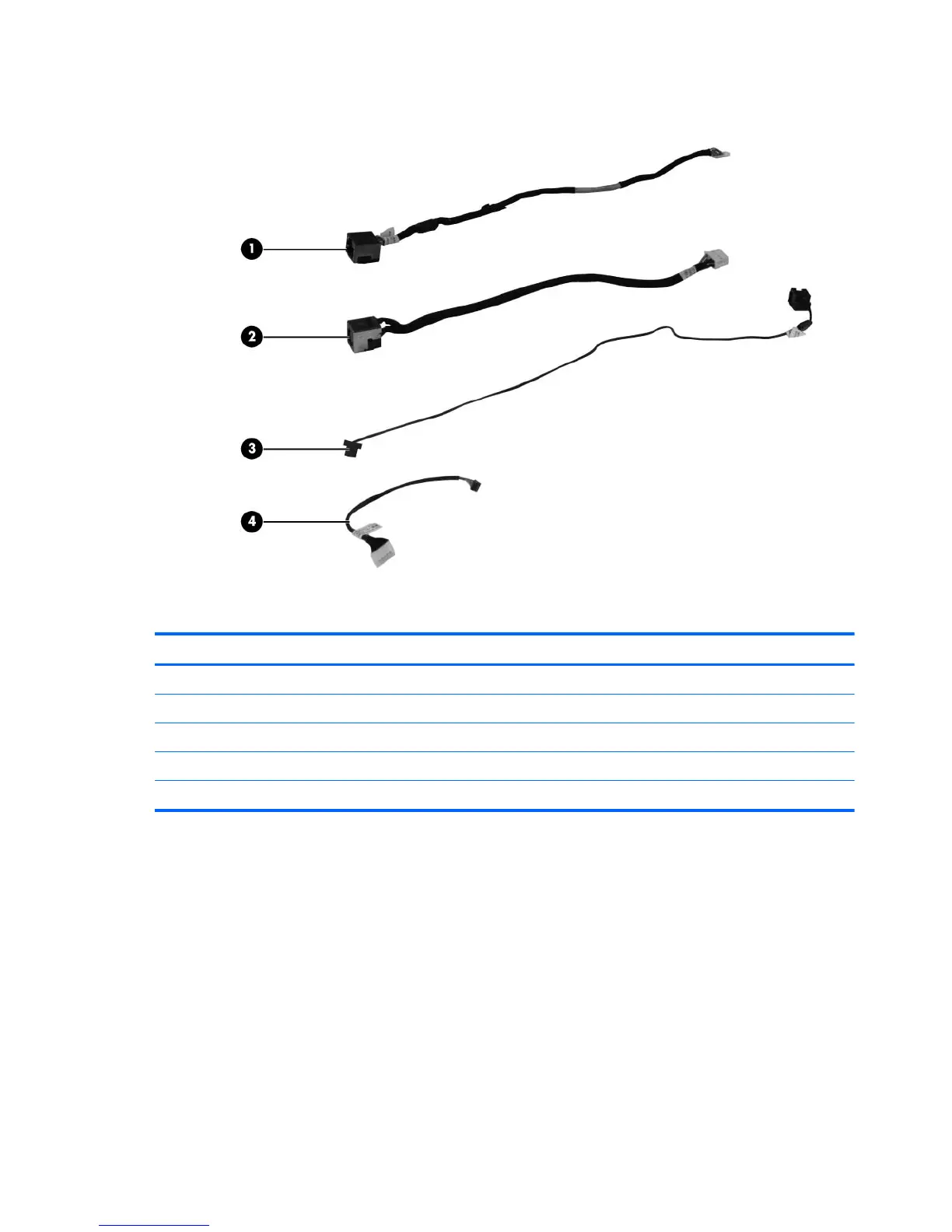

Cable Kit
Item
Description
Spare part
number
Cable Kit
652545-001
(1)
Power connector cable
(2)
Network cable (includes RJ-
45 jack)
(3)
Modem module cable (includ
es RJ-11 jack)
(4)
Bluetooth module cable
26
Chapter 3 Illustrated parts catalo
g
33
35
