9. Remove the Smart Card reader (see Smart Card reader on page 51).
10. Remove the Audio/USB 2.0 board (see
Audio/USB 2.0 board on page 96).
Remove the modem module:
1. Position the computer right-side up with the front toward you.

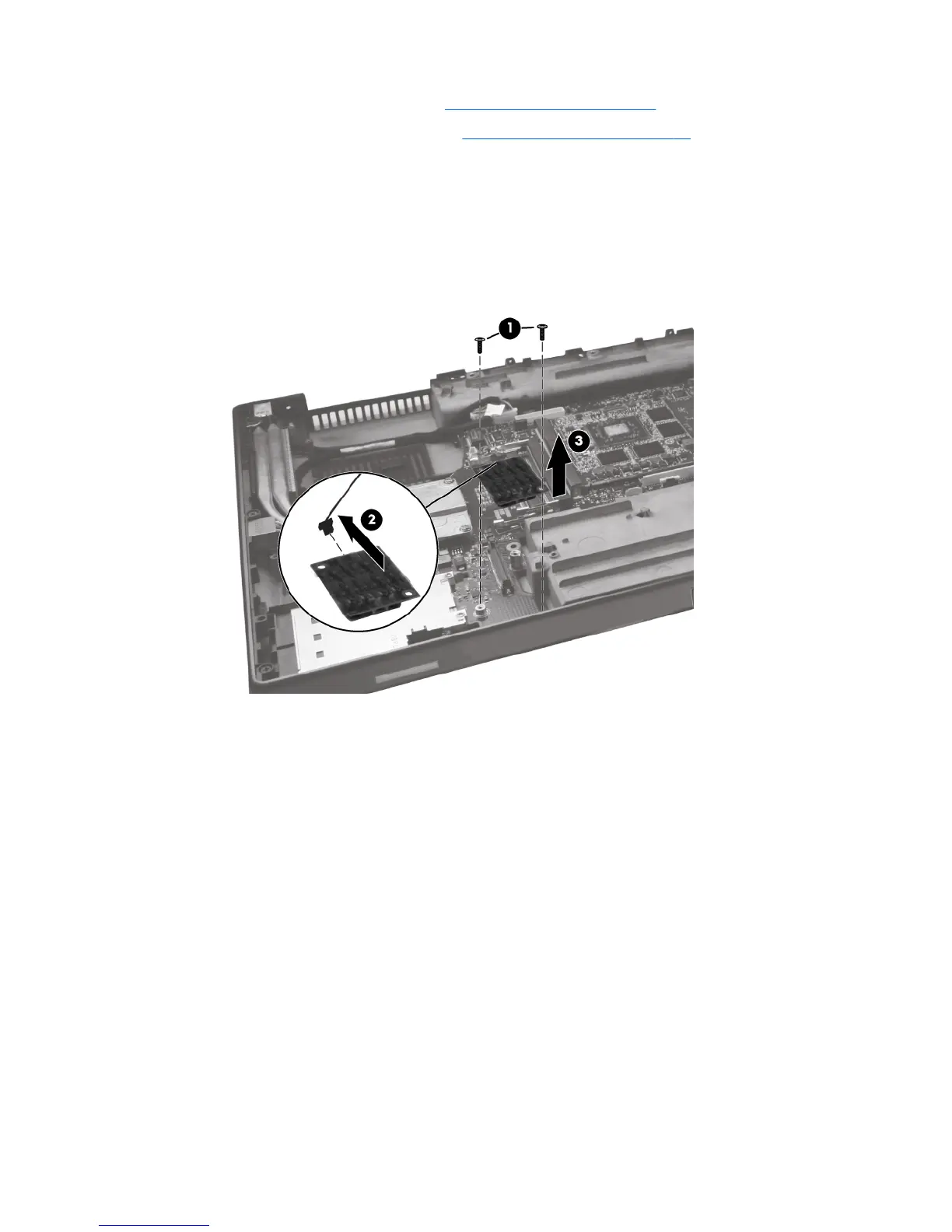

2. Remove the two Phillips M2.0x3.0 screws (1) that secure the modem to the system board.
3. Disconnect the modem cable (2) from the modem.
4. Remove the modem (3) from the system board.
Reverse this procedure to install the modem module.
