14. Remove the Card reader/USB 3.0 board (see Card reader/USB 3.0 board on page 103).
15. Remove the system board (see
System board on page 108).

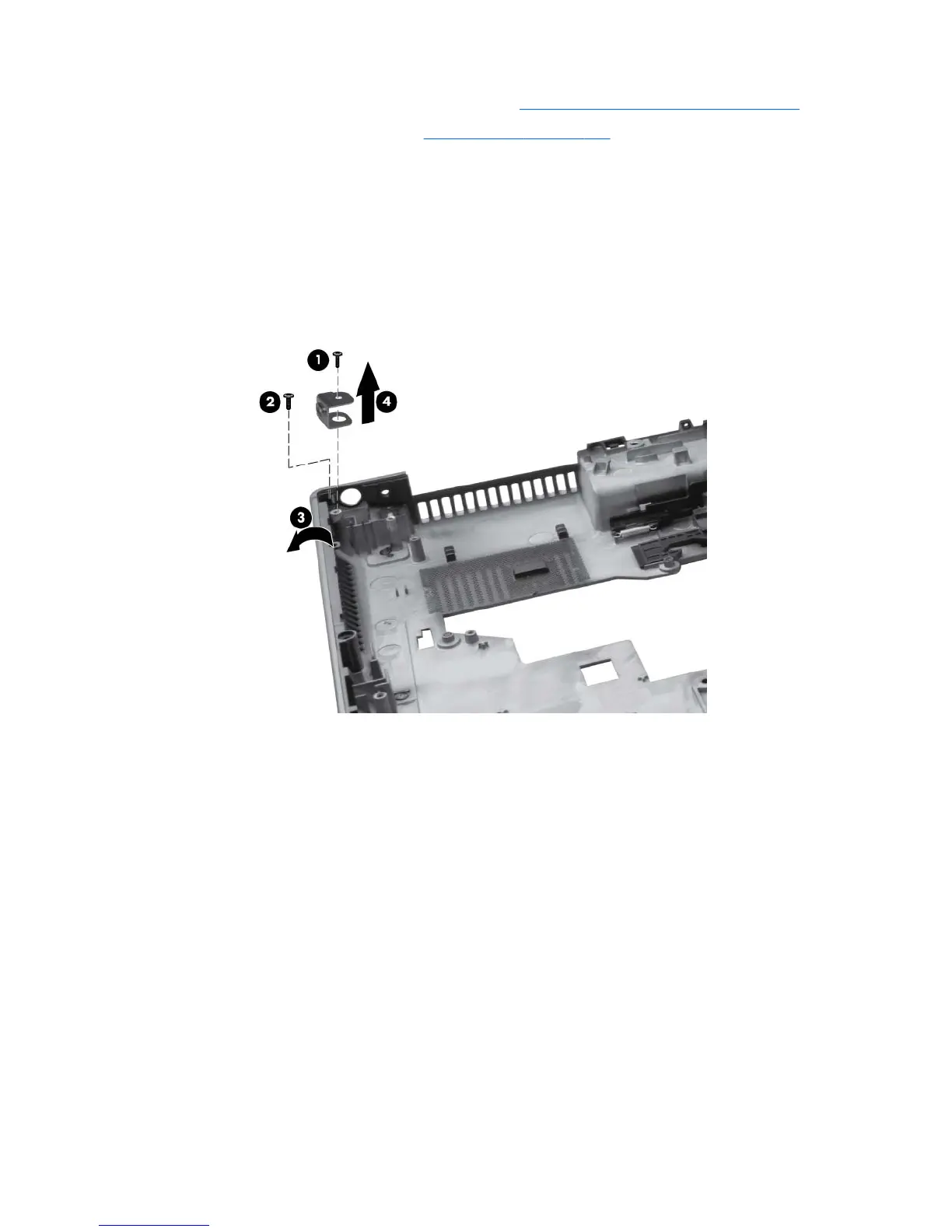

Remove the security lock:
1. Position the computer right-side up with the front toward you.
2. Remove the Torx T9M2.5×6.0 screw (1) that secures the security lock to the base enclosure.
3. Remove the screw (2) that secures the security lock to the base enclosure.
4. Rotate the the security lock (3) away from the base enclosure and remove the security lock from
the base enclosure (4).
Reverse this procedure to install the security lock.
Component replacement procedures 111
