Light pipe
Before removing the light pipe, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the bottom cover (see Bottom cover on page 28)
5. Remove the battery (see Battery on page 29).
6. Remove the system board (see System board on page 48).

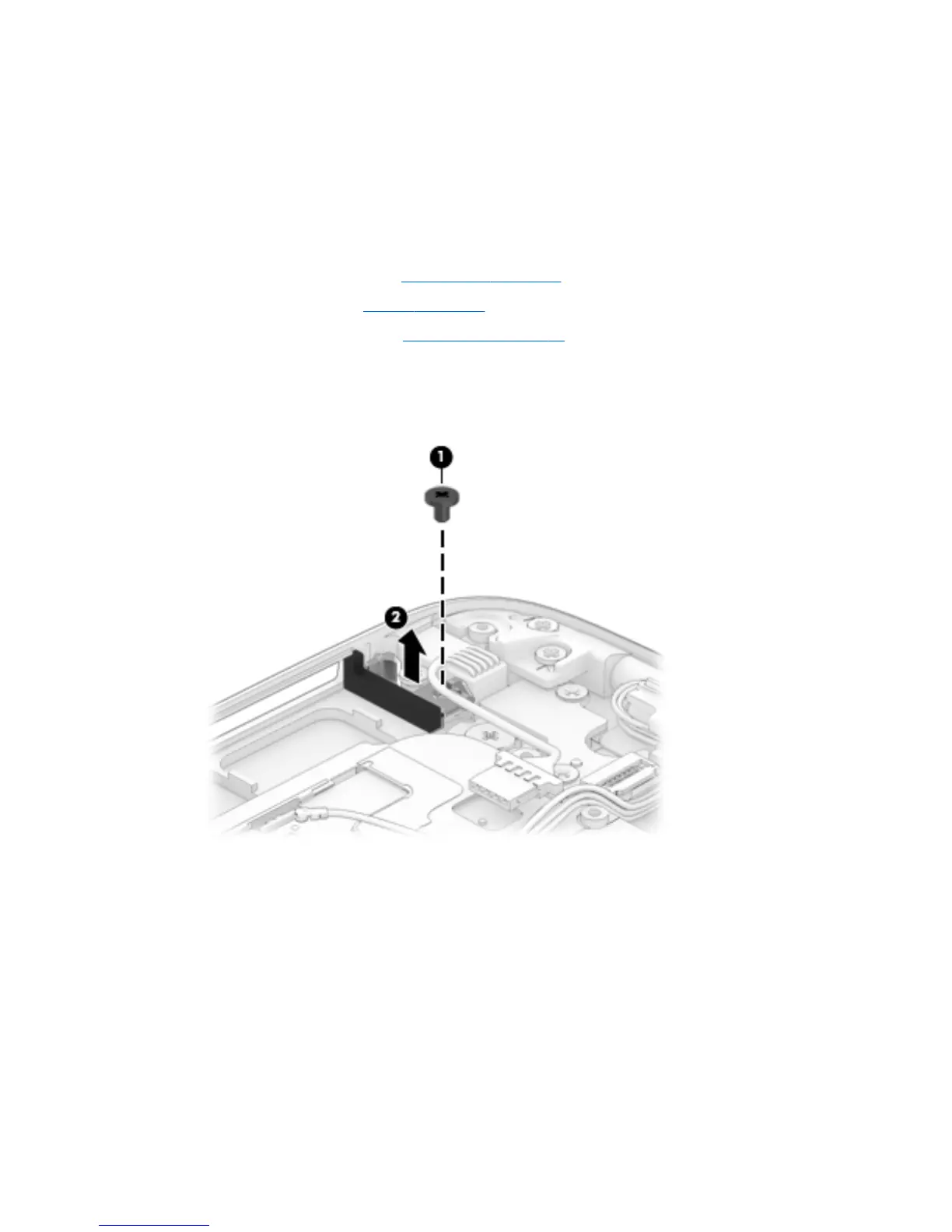

Remove the light pipe:
1. Remove the Phillips PM2.0×3.0 screw (1) that secures the light pipe to the computer.
2. Remove the light pipe from the computer (2).
Reverse the removal procedures to install the light pipe.
Component replacement procedures 55
