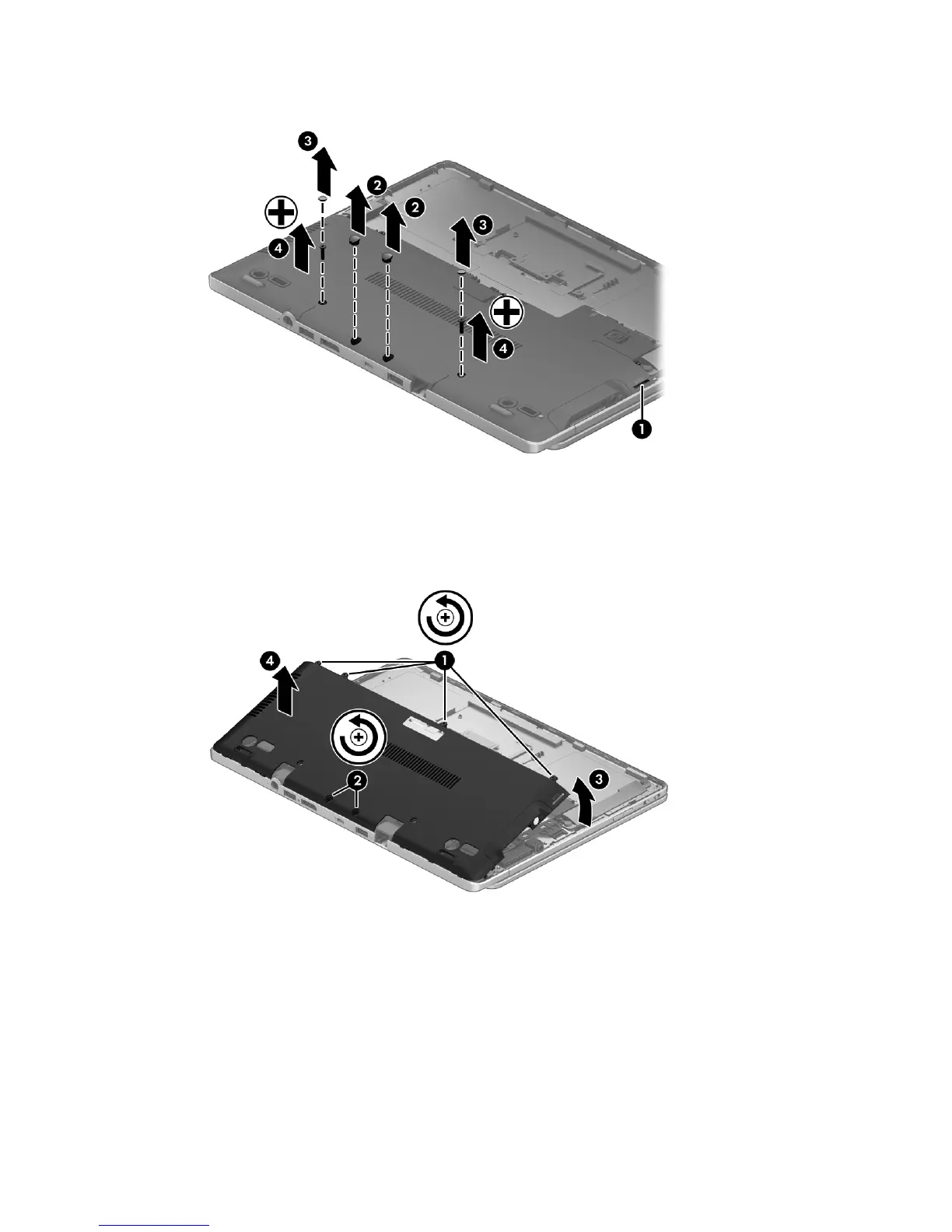

4. Remove the two Phillips PM2.0×8.5 screws (4) that secure the service cover to the computer.
5. Loosen the four captive Phillips screws (1) on the front edge of the service cover.
6. Loosen the two captive Phillips screws (2) on the rear edge of the service cover.
7. Lift the front edge of the service cover (3) until the cover detaches from the computer, and then remove
the service cover (4) from the computer.
Reverse this procedure to install the service cover.
Component replacement procedures 31
