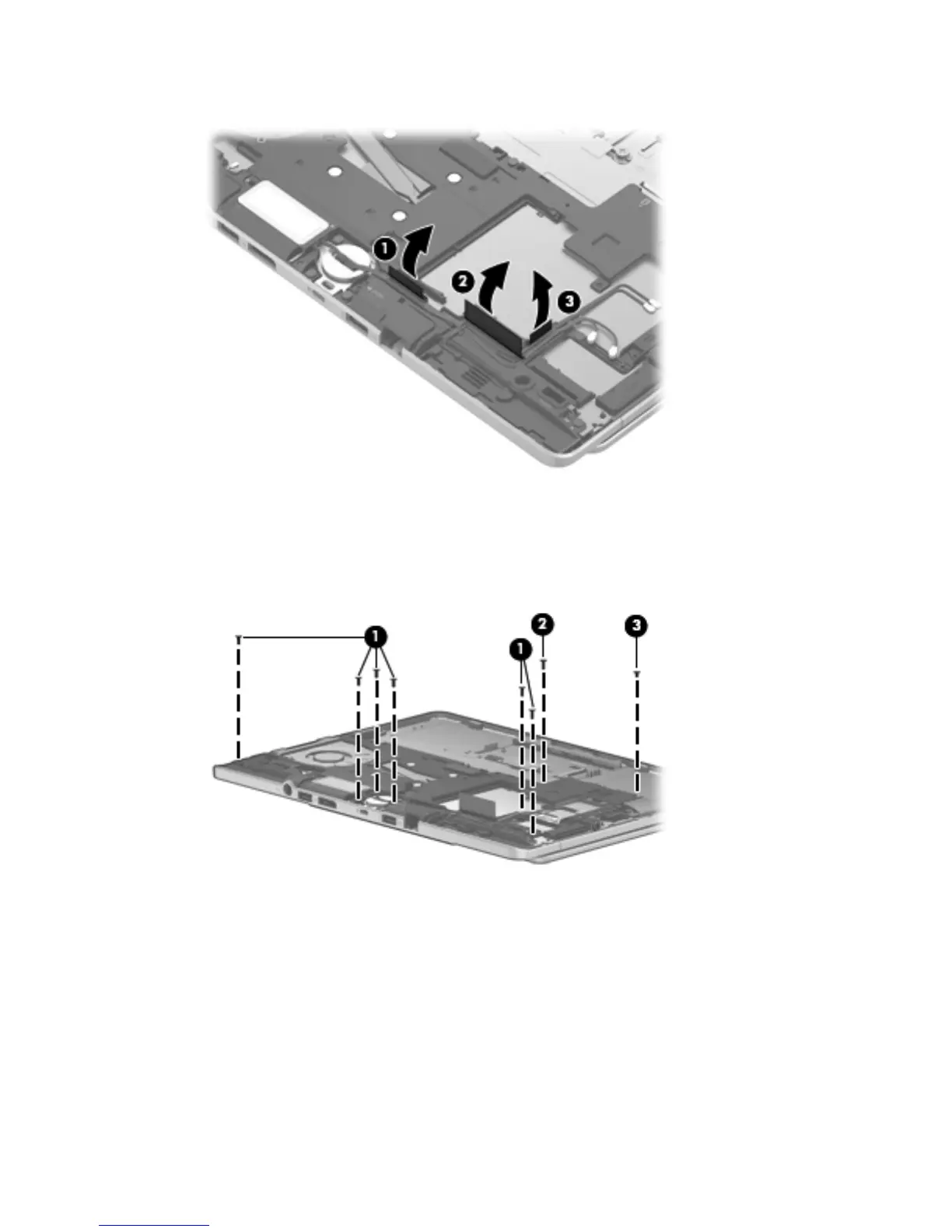

4. Release the tape (1), (2), and (3) that secures the wireless antenna cables.
5. Remove the following screws that secure the bottom cover to the computer:
(1) Six Torx T8M2.0×5.6 screws
(2) One Torx T8M2.0×3.2 screw
(3) One Phillips PM2.0×2.3 broad head screw
Component replacement procedures 45
