HP EliteBook Revolve 810 G3 - Page 67

1. Close the computer.
2. Turn the computer right side up with the rear toward you.

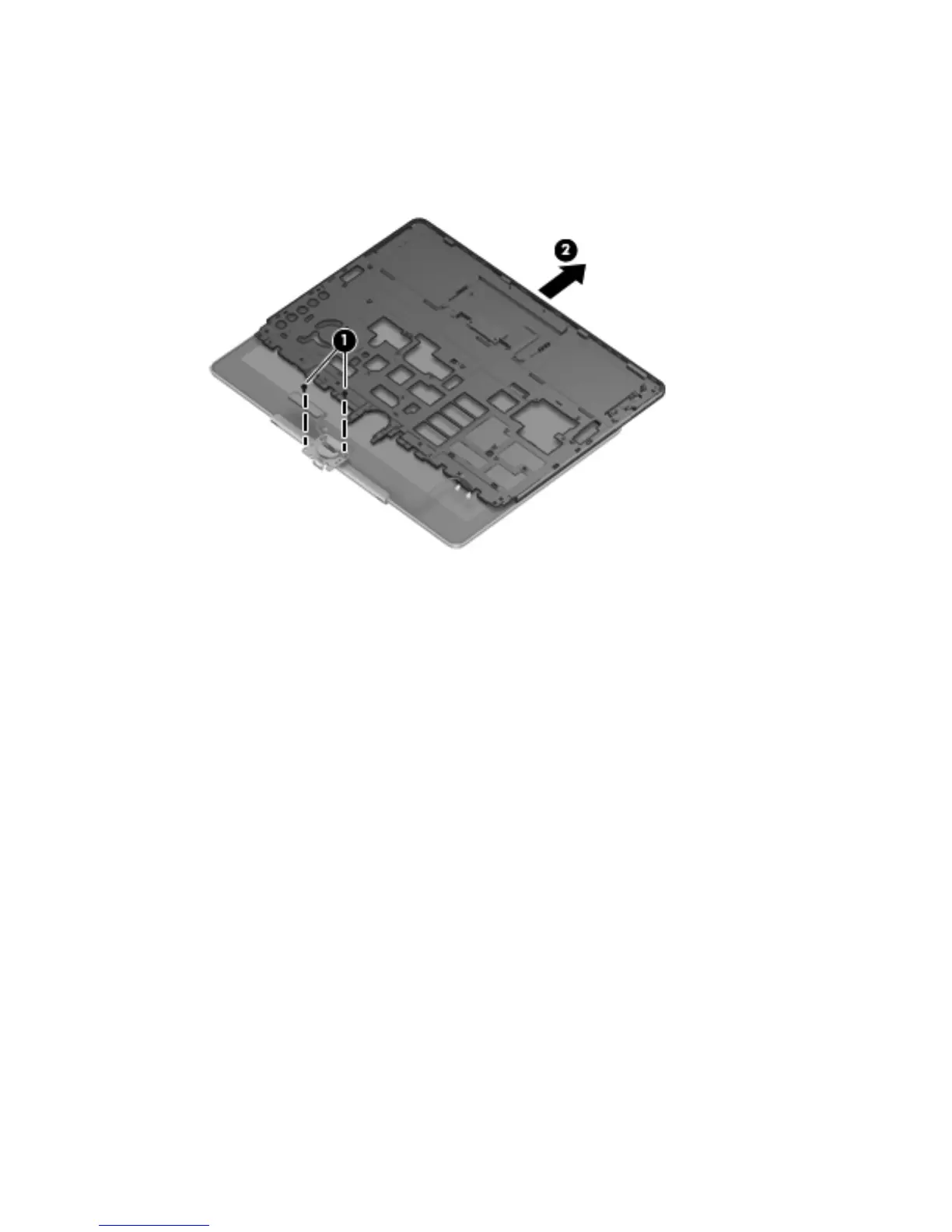

3. Remove the two Phillips PPM2.0×4.4 screws (1) that secure the display assembly to the bottom cover.
4. Slide the bottom cover (2) away from the display assembly.
Reverse this procedure to install the display assembly.
Component replacement procedures 57
