Solid State drive
Description Spare part number
Solid State drive (SSD)
128 GB, M2 SATA-3 VALUE L02464-001
128 GB, M2 TLC L08703-001
256 GB, SED OPAL2 TLC L02465-001
256 GB, PCIe NVMe TLC L02466-001
512 GB, PCIe Gen 3 x 4 NVMe SS TLC L02467-001
360 GB PCIe Gen 3 x 4 SS TLC L02468-001
1 TB, PCIe NVMe TLC L02469-001
Before removing the SSD, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the computer
on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the bottom cover (see Bottom cover on page 26).
5. Remove the battery. (see Battery on page 27).
Remove the SSD:

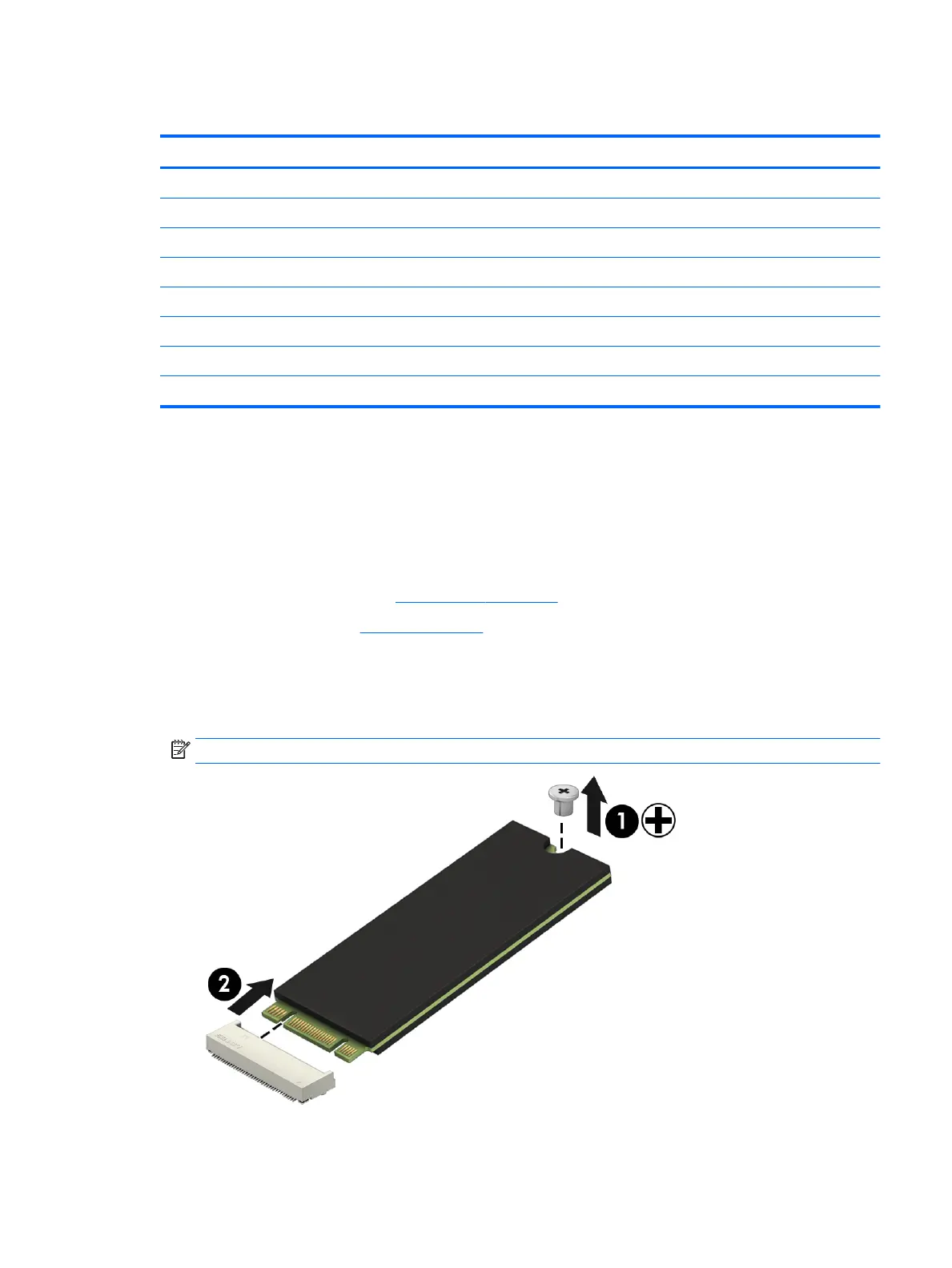

1. Remove the Phillips PM2.0×1.8 screw (1) that secures the drive to the system board.
2. Remove the drive (2) by pulling it away from the connector.
NOTE: SSDs are designed with notches to prevent incorrect insertion.
Reverse this procedure to reassemble and install the SSD.
Component replacement procedures 31
